ECA-1AM222B

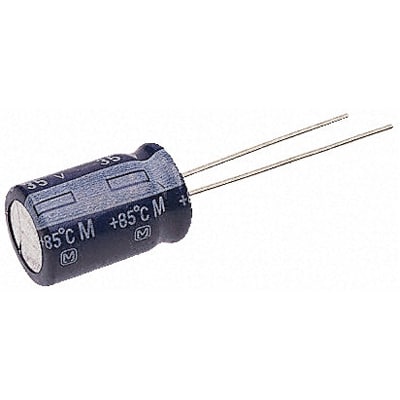

Capacitor,Alum Lytic,Cap 2200 uF,Tol 20%,Vol-Rtg 10 VDC,Radial,10x20,Tape&Box | Panasonic Electronic Components ECA-1AM222B
Availability: Out of Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ECA-1AM222B by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

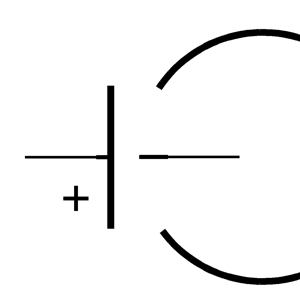

Symbol
No web preview
This Symbol is Available for

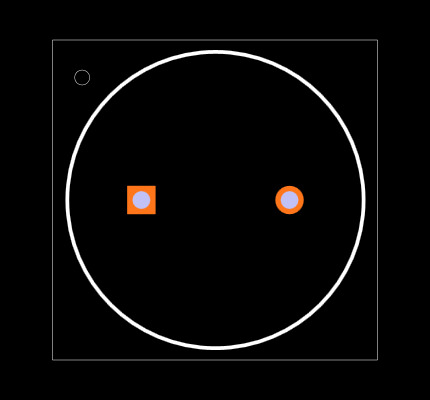

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ECA-1AM222B
| Part Name | ECA-1AM222B |
| Manufacturer | Panasonic Electronic |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 10 (mm) |
| Ripple Current (A) | 920 (mA) |
| Dimensions | 10 x 20 (mm) |
| Mounting Type | Through Hole |
| Series | M |
| Leakage Current (A) | 3 mA |
| Tolerance | ±20 (%) |
| Capacitance | 2200 (µF) |
| Length | 20 (mm) |
| Voltage (V) | 10 (V dc) |
| Minimum Operating Temperature | -40 (°C) |
| Lifetime | 2000 (h) |
| Lead Pitch | 5 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Technology | Aluminium Electrolytic |
