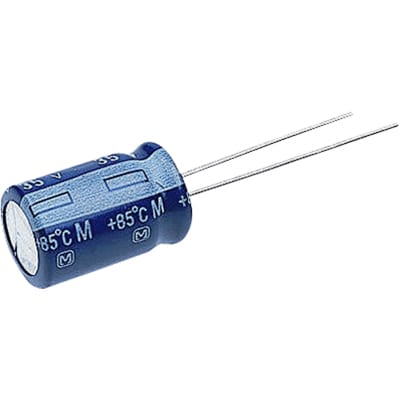

ECA-1HM470
Capacitor,Alum Lytic,Cap 47 uF,Tol 20%,Vol-Rtg 50 VDC,Radial,6.3x11.2,Bulk | Panasonic Electronic Components ECA-1HM470
Availability: Out of Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ECA-1HM470 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ECA-1HM470
| Part Name | ECA-1HM470 |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 6.3 (mm) |
| Ripple Current (A) | 130 (mA) |
| Dimensions | 6.3 x 11.2 (mm) |
| Mounting Type | Through Hole |
| Series | M |
| Capacitance | 47 (µF) |
| Length | 11.2 (mm) |
| Voltage (V) | 50 (V dc) |
| Leakage Current (A) | 3 mA |
| Lifetime | 2000 (h) |
| Lead Pitch | 2.5 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
| Technology | Aluminium Electrolytic |
