ECHO17/0.1M/IPEX/S/S/15

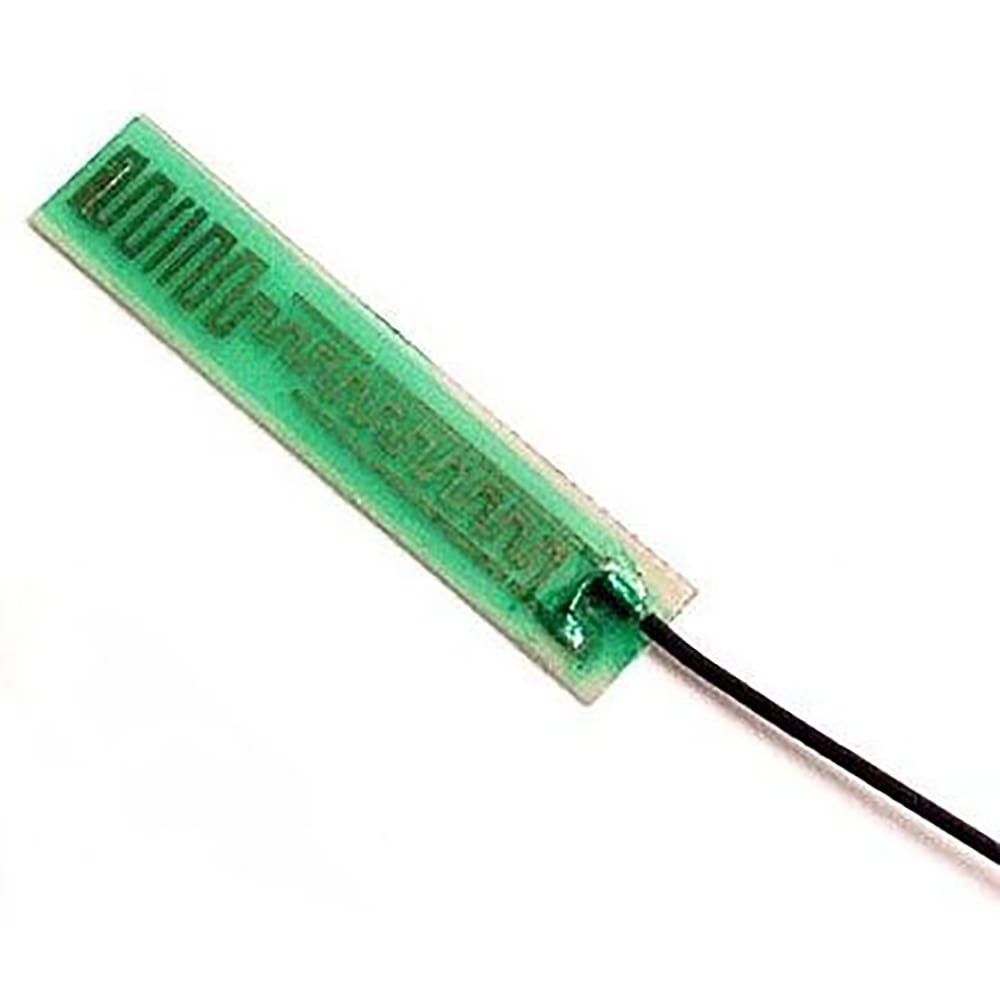

Antenna, Embedded WiFi, Bluetooth, Zigbee 2.4Ghz PCB Antenna, IPEX/uFL, 100mm | Siretta ECHO17/0.1M/IPEX/S/S/15
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ECHO17/0.1M/IPEX/S/S/15 by Siretta and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ECHO17/0.1M/IPEX/S/S/15
| Part Name | ECHO17/0.1M/IPEX/S/S/15 |
| Manufacturer | Siretta |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Frequency Range | 2.4 GHz |
| Mounting Type | PCB |
| Antenna Mounting Type | PCB |
| Antenna Directivity | Omnidirectional |
| Series | Echo 17 |
| Rf Protocols | WiFi |
| Connector Type | IPEX |
| Internal External | Internal |
| Antenna Physical Form | PCB |
| Gain | 2.6 (dBi) |
| Minimum Operating Temperature | -20 (°C) |
| Maximum Operating Temperature | +60 (°C) |
| Cable Length | 100 (mm) |
