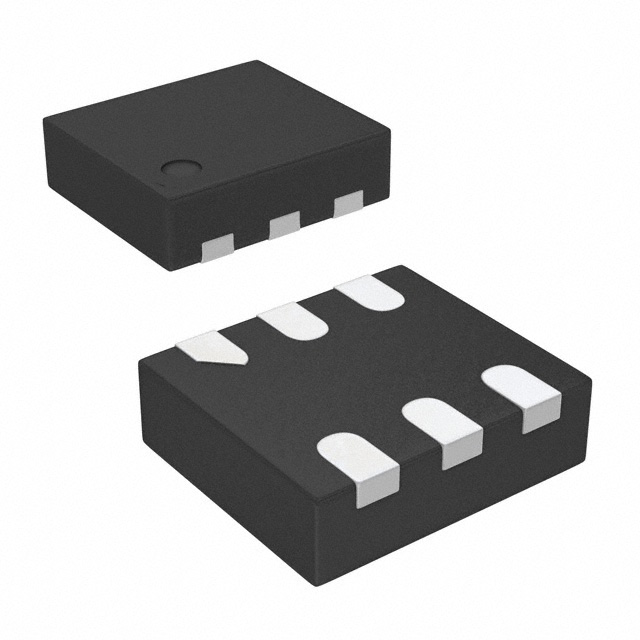

ECMF02-2AMX6
2 Line Common Mode Choke Surface Mount 200mA DCR 2.5Ohm
Availability: In Stock
Package Type: UFQFN-6
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ECMF02-2AMX6 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

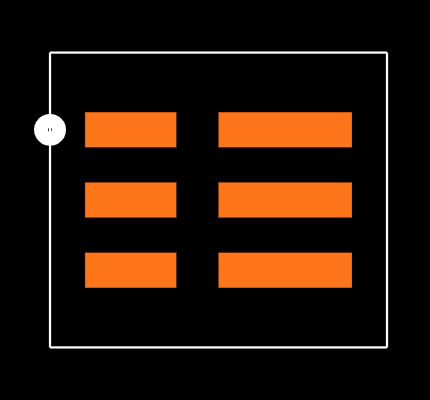

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ECMF02-2AMX6
| Part Name | ECMF02-2AMX6 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 1.8 x 1.6 x 0.5 (mm) |
| Mounting Type | Surface Mount |
| Series | ECMF02 |
| Maximum Current Rating (A) | 200 (mA) |
| Termination Style | Flat Contact |
| Depth | 1.6 (mm) |
| Height | 0.5 (mm) |
| Length | 1.8 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Package/Case | μQFN |
