EE-SX1103
Optical Sensor Through-Beam 0.079" (2mm) Phototransistor PCB Mount
Availability: Out of Stock
Package Type: PCB MOUNT
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EE-SX1103 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

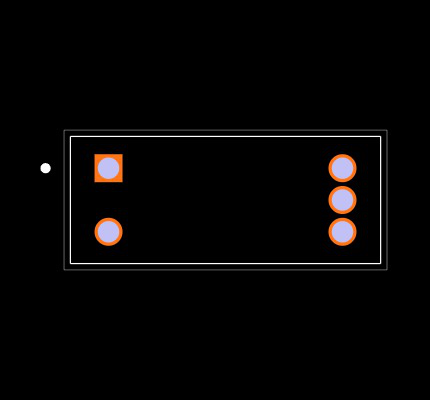

- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EE-SX1103
| Part Name | EE-SX1103 |
| Manufacturer | Omron Electronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Ac Voltage (V) | 1.6 (V) |
| Maximum Current (A) | 50 mA |
| Sensor Style | Block |
| Detection Type | Diffuse |
| Minimum Operating Temperature | -25 (°C) |
| Distrelec Product Id | 30424539 |
| Response Time | 10 μs |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | PCB Pin |
No issues have been reported for the EE-SX1103
