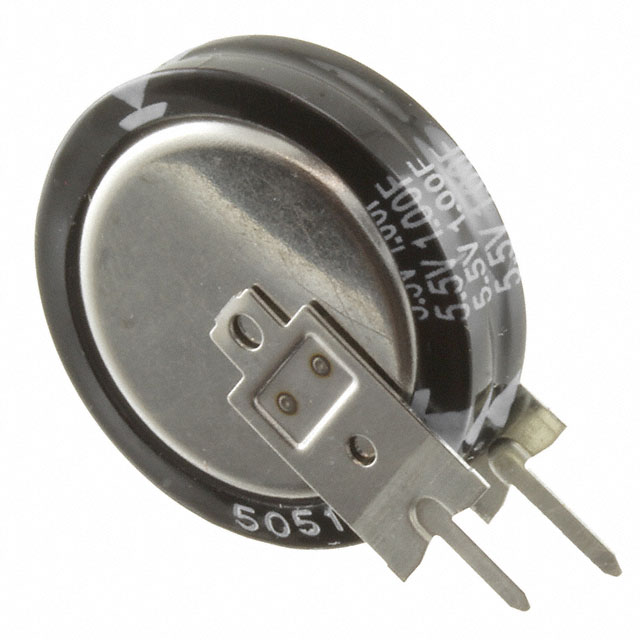

EECS5R5V105
1 F (EDLC) Supercapacitor 5.5 V Axial, Can - Vertical 30Ohm @ 1kHz 1000 Hrs @ 70°C
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EECS5R5V105 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EECS5R5V105
| Part Name | EECS5R5V105 |
| Manufacturer | Panasonic |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 16 (mm) |
| Lead Diameter | 0.8 (mm) |
| Mounting Type | Through Hole |
| Tolerance Plus | +20 (%) |
| Series | NHG |
| Leakage Current (A) | 3 μA |
| Height | 25 (mm) |
| Capacitance | 330 (µF) |
| Tolerance Minus | -20 (%) |
| Voltage (V) | 100 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Tolerance | ±20 (%) |
| Lifetime | 2000 (h) |
| Lead Pitch | 7.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Terminal Type | Through Hole |
| Dimensions | 16 (Dia.) x 25 (mm) |
No issues have been reported for the EECS5R5V105
