EEE-1CA101WP
Capacitor,Alum Electrolytic,Cap 100 uF,Tol 20%,Vol-Rtg 16 VDC,SMT,6.3x5.5,TR | Panasonic Electronic Components EEE-1CA101WP
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEE-1CA101WP by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

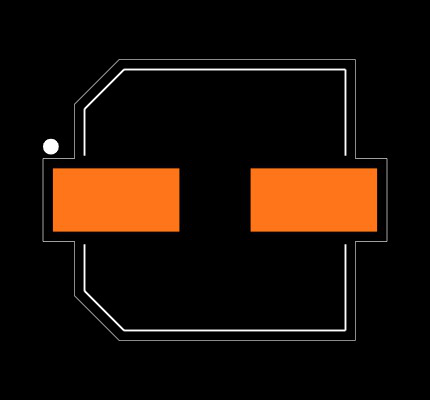

Footprint
No web preview
This Footprint is Available for

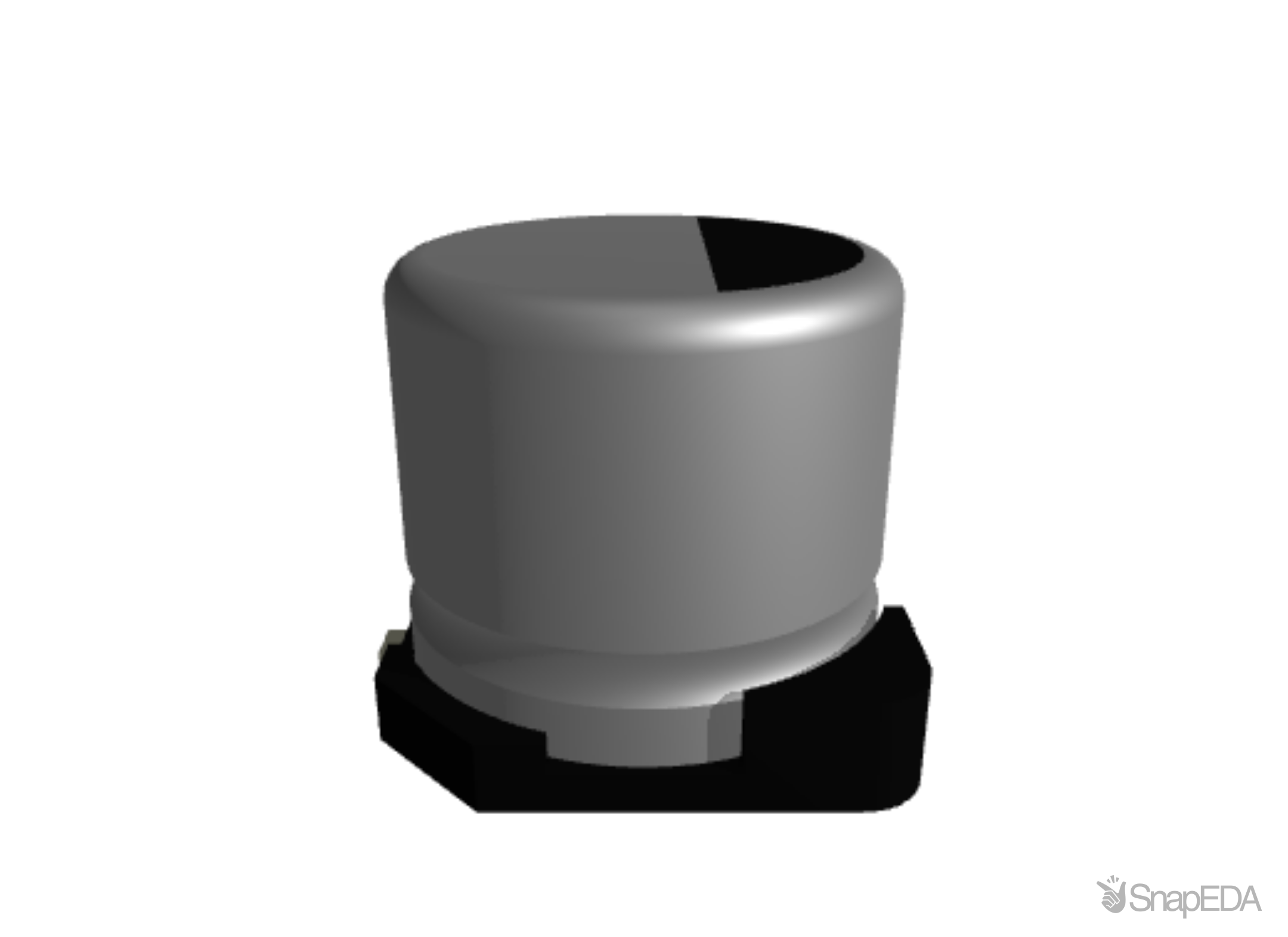

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEE-1CA101WP
| Part Name | EEE-1CA101WP |
| Manufacturer | Panasonic Electronic |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 6.3 (mm) |
| Ripple Current (A) | 70 (mA) |
| Dimensions | 6.3 x 5.4 (mm) |
| Mounting Type | Surface Mount |
| Series | S(V) |
| Capacitance | 100 (µF) |
| Length | 5.4 (mm) |
| Voltage (V) | 16 (V dc) |
| Leakage Current (A) | 3 μA |
| Lifetime | 1000 (h) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
| Technology | Aluminium Electrolytic |
