EEEFTJ681XAP

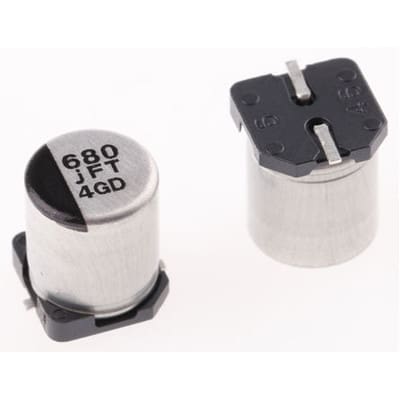

680uF 6.3V dc ALUM Electrolytic Capacitor D8,FT SMD Series 2000h 6.3(Dia.)x7.7mm | Panasonic Electronic Components EEEFTJ681XAP
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEEFTJ681XAP by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEEFTJ681XAP
| Part Name | EEEFTJ681XAP |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 6.3 (mm) |
| Ripple Current (A) | 600 (mA) |
| Leakage Current (A) | 42.8 μA |
| Mounting Type | Surface Mount |
| Tolerance | ±20 (%) |
| Series | FT |
| Dissipation Factor | 200 (%) |
| Height | 7.7 (mm) |
| Capacitance | 680 (µF) |
| Length | 7.7 (mm) |
| Equivalent Series Resistance | 160 (mΩ) |
| Minimum Operating Temperature | -55 (°C) |
| Voltage (V) | 6.3 (V dc) |
| Lifetime | 2000 (h) |
| Lead Pitch | 1.8 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Technology | Aluminium Electrolytic |
| Automotive Standard | AEC-Q200 |
| Polarised | Polar |
| Dimensions | 6.3 (Dia.) x 7.7 (mm) |
