EEETC1E221P
Cap Aluminum Lytic 220uF 25V 20% (10 X 10.2mm) SMD 0.15 Ohm 750mA 3000h 125C T/R
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEETC1E221P by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

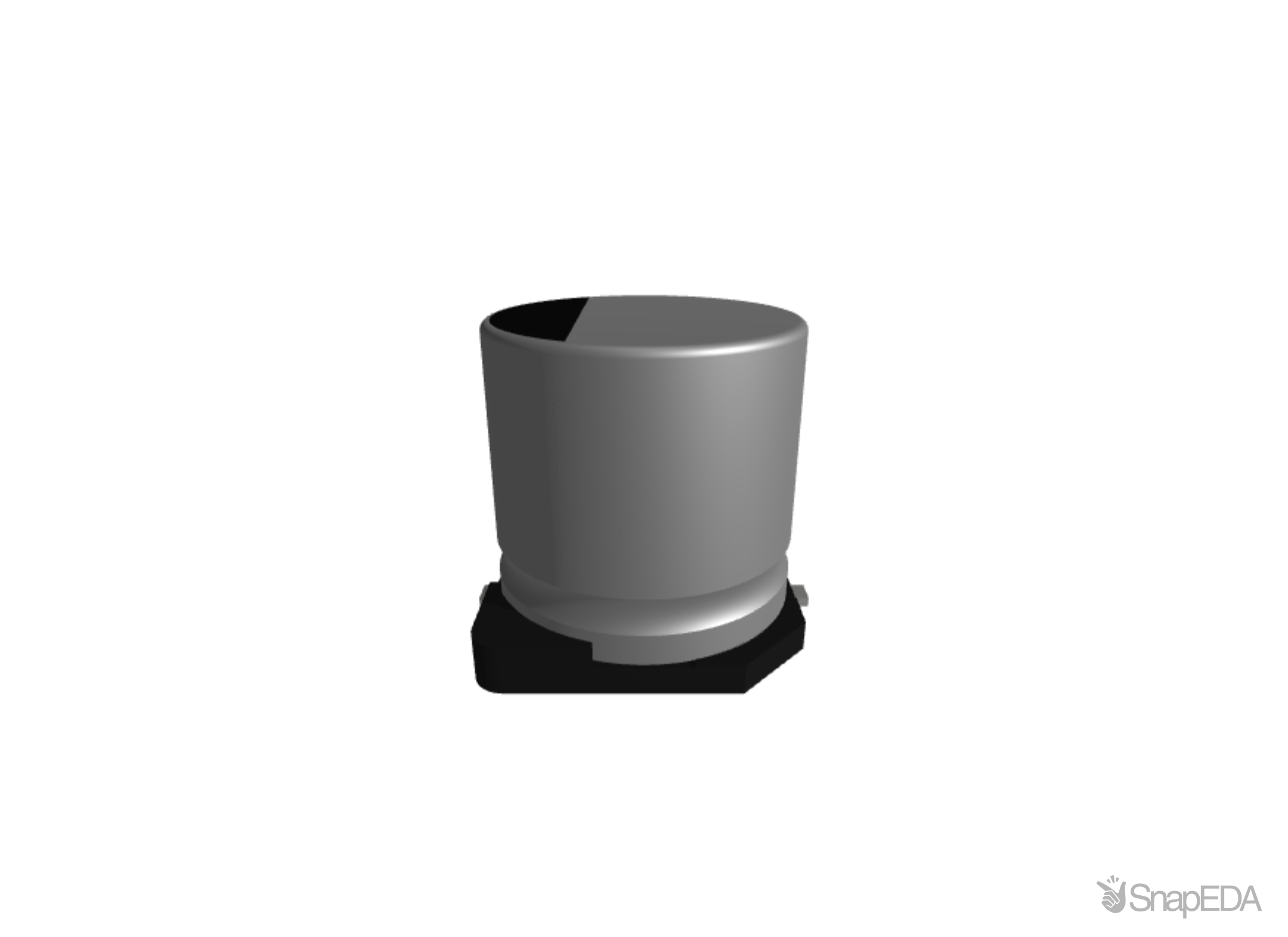

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEETC1E221P
| Part Name | EEETC1E221P |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 10 (mm) |
| Ripple Current (A) | 750 (mArms) |
| Dimensions | 10 (Dia.) x 10.2 (mm) |
| Mounting Type | Surface Mount |
| Series | TC |
| Leakage Current (A) | ≤0.01 CV μA |
| Dissipation Factor | 0.18 (%) |
| Capacitance | 220 (µF) |
| Depth | 10.2 (mm) |
| Equivalent Series Resistance | 0.15 Ω @ +20 °C, 2 Ω @ -40 °C |
| Minimum Operating Temperature | -40 (°C) |
| Voltage (V) | 25 (V dc) |
| Lifetime | 3000 (h) |
| Lead Pitch | 4.6 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
