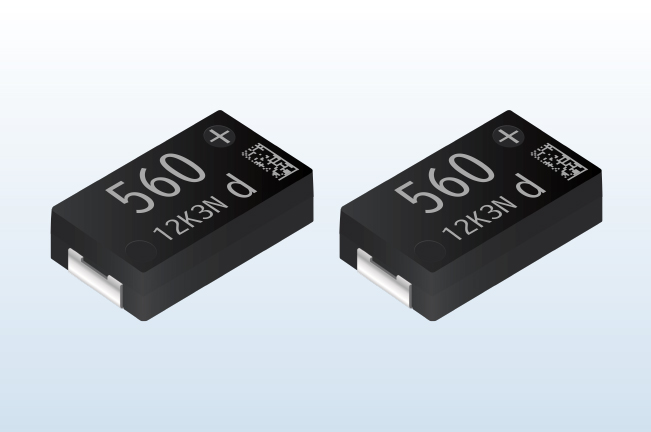

EEFKZ0D561RC
Series/Type: KZ, Rated voltage (V): 2, Capacitance (µF): 560, Equivalent series resistance [Max.] (mΩ): 4.5, Leakage Current [Max.] (µA): 112, Category Temperature Range (°C): -55 to 125, Body Length (mm): 7.3, Body Width (mm): 4.3, Body Height (mm): 2.2, Rated ripple current (A): 8.5, Endurance (h): 5500
Availability: Out of Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEFKZ0D561RC by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the EEFKZ0D561RC
Part Name | EEFKZ0D561RC |
Manufacturer | Panasonic |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the EEFKZ0D561RC
If you experienced any issues with the symbol or footprint, please report it.
