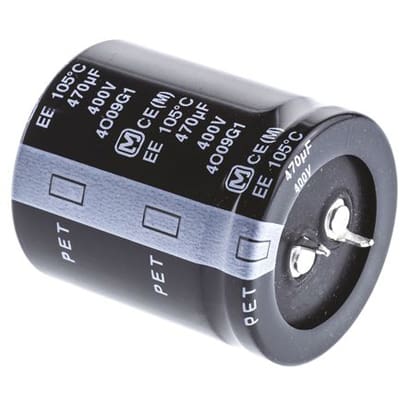

EETEE2G471LJ
CAP, 470µF, 400V, ALU ELEC, SNAP IN; Capacitance:470µF; Voltage Rating:400V; Product Range:EE Series; Lifetime @ Temperature:3000 hours @ 105°C; Capacitance Tolerance:± 20%; Capacitor Terminals:Quick Connect, Snap-In; Diameter:35mm; Lead Spacing:10mm; Operating Temperature Min:-25°C; Operating Temperature Max:105°C; Height:40mm; ESR:-; Automotive Qualification Standard:-; SVHC:No SVHC (07-Jul-2017); AC Ripple Current @ 120Hz:2.85A; Capacitance Tolerance ±:± 20%; No. of Pins:2Pins; Operating Temperature Range:-25°C to +105°C
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EETEE2G471LJ by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EETEE2G471LJ
| Part Name | EETEE2G471LJ |
| Manufacturer | Panasonic |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the EETEE2G471LJ by Panasonic from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Mouser |
|
N/A | Visit Site | |
| RS Americas |
|
|
Visit Site |
No issues have been reported for the EETEE2G471LJ
