EEUEE2G150

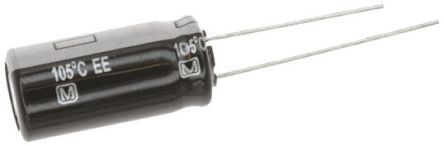

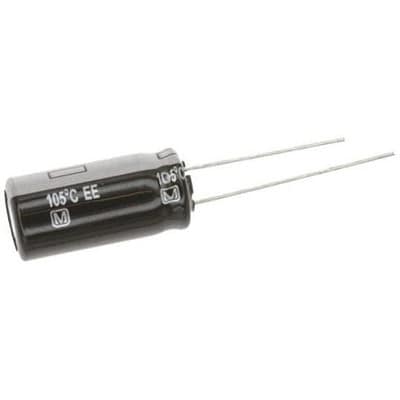

15uF 400V dc ALUM Electrolytic Capacitor,EE RADIAL Series 10000h 12.5(Dia.)x20mm | Panasonic Electronic Components EEUEE2G150
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEUEE2G150 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEUEE2G150
| Part Name | EEUEE2G150 |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 12.5 (mm) |
| Ripple Current (A) | 590 (mA) |
| Dimensions | 12.5 (Dia.) x 20 (mm) |
| Mounting Type | Radial, Through Hole |
| Series | EE RADIAL |
| Height | 20 (mm) |
| Capacitance | 15 (µF) |
| Voltage (V) | 400 (V dc) |
| Minimum Operating Temperature | -25 (°C) |
| Lifetime | 10000 (h) |
| Lead Pitch | 5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
