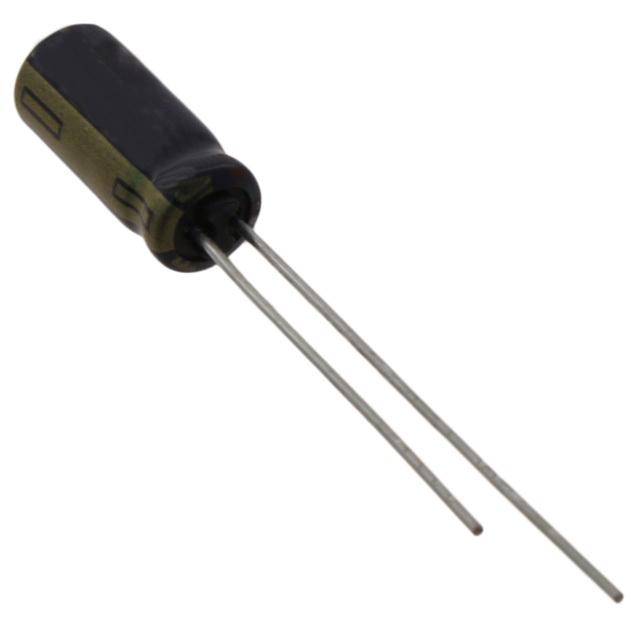

EEUFC1V102S
Cap Aluminum Lytic 1000uF 35V 20% (16 X 20mm) Radial 7.5mm 2205mA 5000h 105?C Automotive Bulk
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEUFC1V102S by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEUFC1V102S
| Part Name | EEUFC1V102S |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 16 (mm) |
| Ripple Current (A) | 2.205 (A) |
| Dimensions | 16 (Dia.) x 20 (mm) |
| Mounting Type | Radial, Through Hole |
| Series | FC |
| Equivalent Series Resistance | 29 (mΩ) |
| Height | 20 (mm) |
| Capacitance | 1000 (µF) |
| Voltage (V) | 35 (V dc) |
| Leakage Current (A) | 3 μA |
| Lifetime | 5000 (h) |
| Lead Pitch | 7.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
