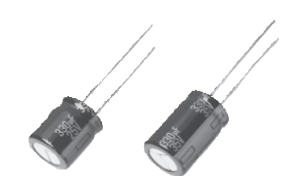

EEUFR1C102L
Capacitor; Alum Electrolytic; Cap 1000 uF; Tol 20%; Vol-Rtg 16 VDC; Radial; 8x20; Bulk
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEUFR1C102L by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEUFR1C102L
| Part Name | EEUFR1C102L |
| Manufacturer | Panasonic |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 8 (mm) |
| Ripple Current (A) | 1.56 (A) |
| Dimensions | 8 (Dia.) x 20 (mm) |
| Mounting Type | Radial, Through Hole |
| Series | FR Radial |
| Height | 20 (mm) |
| Capacitance | 1000 (µF) |
| Voltage (V) | 16 (V dc) |
| Minimum Operating Temperature | -40 (°C) |
| Lifetime | 9000 (h) |
| Lead Pitch | 3.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
Inventory for the EEUFR1C102L by Panasonic from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,653
|
|
Visit Site | |
|
★ Featured
|
17,023
|
|
Visit Site | |
|
★ Featured
|
847
|
1,500 x $0.20
|
Visit Site | |
| Arrow Europe |
45,271
|
589 x $0.15
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
446
|
|
Visit Site | |
| Farnell UK |
27,950
|
|
Visit Site | |
| Newark |
28,124
|
|
Visit Site | |
| RS UK |
2,680
|
10 x $0.72
|
Visit Site | |
| Rutronik |
21,000
|
|
Visit Site | |
| Schukat Electronic |
2,500
|
|
Visit Site | |
| TME |
3,315
|
|
Visit Site | |
| TTI Europe |
1,000
|
|
Visit Site | |
| Verical |
2,017
|
225 x $0.31
|
Visit Site | |
| element14 Singapore |
27,960
|
|
Visit Site |
No issues have been reported for the EEUFR1C102L
