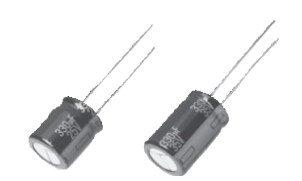

EEUFR1H101
100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - 6000 Hrs @ 105°C
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEUFR1H101 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEUFR1H101
| Part Name | EEUFR1H101 |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 8 (mm) |
| Ripple Current (A) | 870 (mA) |
| Dimensions | 8 (Dia.) x 11.5 (mm) |
| Mounting Type | Radial, Through Hole |
| Series | FR-A |
| Dissipation Factor | 200 (%) |
| Height | 11.5 (mm) |
| Capacitance | 100 (µF) |
| Length | 11.5 (mm) |
| Voltage (V) | 50 (V dc) |
| Leakage Current (A) | 50 μA |
| Lifetime | 6000 (h) |
| Lead Pitch | 3.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
Inventory for the EEUFR1H101 by Panasonic from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
340
|
|
Visit Site | |
|
★ Featured
|
2,115
|
2,385 x $0.15
|
Visit Site | |
| Arrow Europe |
16,220
|
|
Visit Site | |
| Verical |
11,800
|
|
Visit Site |
No issues have been reported for the EEUFR1H101
