EEVFK1J221Q

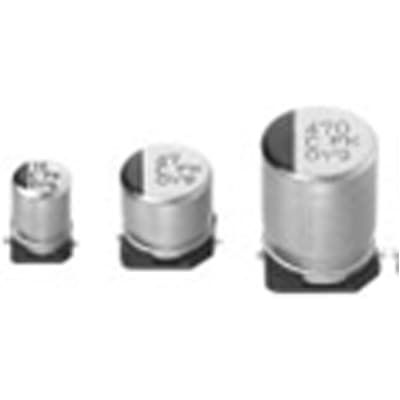

Capacitor;Aluminum Electrolytic;Ecap 220uF 63V H13 Case FK SMT | Panasonic Electronic Components EEVFK1J221Q
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEVFK1J221Q by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEVFK1J221Q
| Part Name | EEVFK1J221Q |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 12.5 (mm) |
| Ripple Current (A) | 800 (mA) |
| Dimensions | 12.5 (Dia.) x 13.5 (mm) |
| Mounting Type | Surface Mount |
| Series | FK SMD |
| Minimum Operating Temperature | -55 (°C) |
| Equivalent Series Resistance | 160 (mΩ) |
| Height | 13.5 (mm) |
| Capacitance | 220 (µF) |
| Tolerance | ±20 (%) |
| Voltage (V) | 63 (V dc) |
| Leakage Current (A) | 3 μA |
| Lifetime | 5000 (h) |
| Maximum Operating Temperature | +105 (°C) |
| Automotive Standard | AEC-Q200 |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
