EH6MD2X

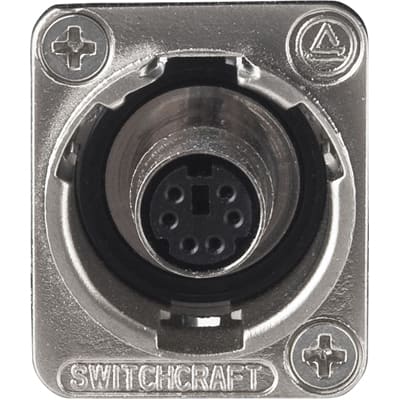

EH Series 6 Pole Din Connector Socket | Switchcraft EH6MD2X
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EH6MD2X by SWITCHCRAFT and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

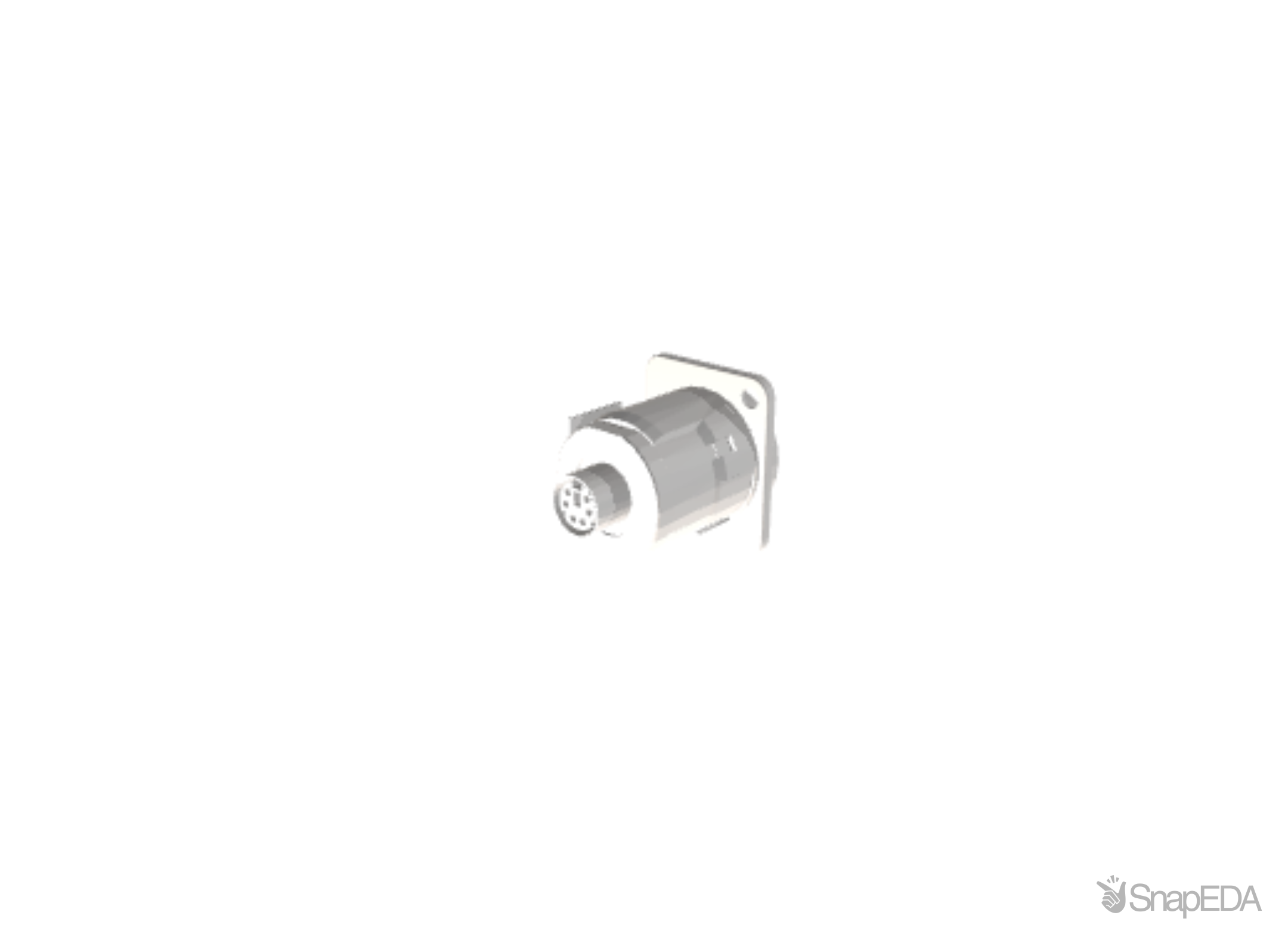

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EH6MD2X
| Part Name | EH6MD2X |
| Manufacturer | Switchcraft |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Panel Mount |
| Gender | Female |
| Body Orientation | Straight |
| Housing Material | Zinc Alloy |
| Contact Plating | Nickel |
| Series | EH |
| Number Of Contacts | 6 |
| Contact Material | Copper Alloy |
