EKMC1603112
Sensor PIR (Passive Infrared) 472" (12m) 39.4' Long Distance Lens, Black -
Availability: Out of Stock
Package Type: -
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EKMC1603112 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

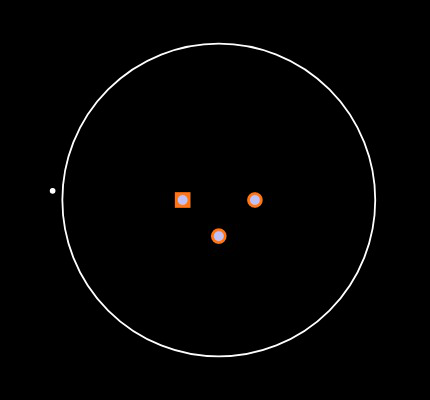

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EKMC1603112
| Part Name | EKMC1603112 |
| Manufacturer | Panasonic Electric |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 3 |
| Dimensions | 11 x 20.2 x 22 (mm) |
| Maximum Operating Supply Voltage (V) | 7 V |
| Series | EKMC |
| Minimum Operating Supply Voltage (V) | -0.3 V |
| Output Type | Digital |
| Height | 20.2 (mm) |
| Width | 11 (Base) mm, 22 (Top) mm |
| Maximum Supply Current (A) | 170 μA |
| Switching Mode | Digital |
| Sensing Distance | 12 (m) |
| Maximum Output Voltage (V) | 0.5 V |
| Minimum Operating Temperature | -20 °C |
| Mounting Type | Through Hole |
| Maximum Operating Temperature | +60 °C |
| Maximum Output Current (A) | 100 (µA) |
| Sensor Type | PIR Sensor |
