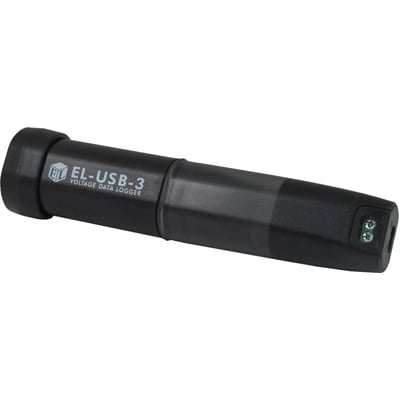

EL-USB-3
Data Logger Voltage With USB Interface Easylog Series | Lascar Electronics EL-USB-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EL-USB-3 by Lascar Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EL-USB-3
| Part Name | EL-USB-3 |
| Manufacturer | Lascar Electronics |
| Category | Test & Measurement |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Readings Per Channel | 32510 |
| Measurement Parameters | Voltage |
| Dimensions | 26.8 (Dia.) x 98 (mm) |
| Power Source | Battery |
| Alarm | Yes |
| Model Number | EL-USB-3 |
| Maximum Voltage Measurement (V) | 30 (V dc) |
| Battery Life | 3 Years |
| Data Logger Type | Voltage |
| Interface Type | USB |
| Minimum Operating Temperature | -35 (°C) |
| Distrelec Product Id | 17670792 |
| Battery Type | 1/2AA |
| Includes | 1/2 AA Battery |
| Maximum Operating Temperature | +80 (°C) |
| Best Voltage Measurement Accuracy (V) | ±1 % |
| Number Of Input Channels | 1 |
| Sensor Type | Voltage |
Inventory for the EL-USB-3 by Lascar Electronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1
|
1 x $115.91
|
Visit Site | |
| Farnell UK |
44
|
|
Visit Site | |
| Newark |
44
|
1 x $80.64
|
Visit Site | |
| RS UK |
25
|
1 x $77.70
|
Visit Site | |
| TME |
11
|
1 x $80.23
|
Visit Site | |
| element14 Singapore |
44
|
|
Visit Site |
No issues have been reported for the EL-USB-3
