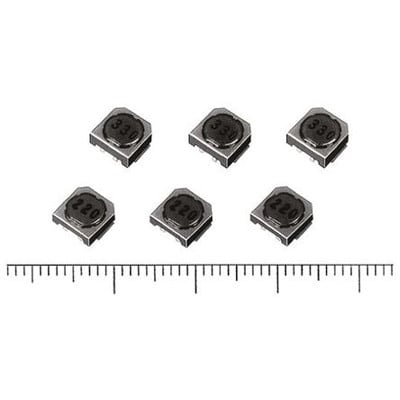

ELL6SH681M
Ind Power Choke Shielded Wirewound 680uH 20% 100KHz 160mA Embossed Carrier T/R
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ELL6SH681M by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ELL6SH681M
| Part Name | ELL6SH681M |
| Manufacturer | Panasonic |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 4.3 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 6 x 6 x 3 (mm) |
| Shielded | Yes |
| Series | ELL6S |
| Length | 6 (mm) |
| Height | 3 (mm) |
| Package Case | ELL6SH |
| Depth | 6 (mm) |
| Inductance | 680 μH |
| Maximum Dc Current (A) | 160 (mA) |
| Tolerance | ±20 (%) |
No issues have been reported for the ELL6SH681M
