EMC-20
SnapVerified

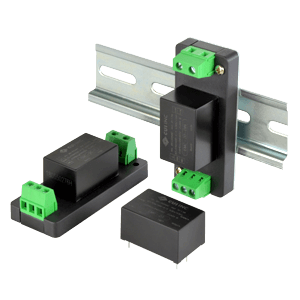

Ac-Dc EMC Filter, 20 dB, 1.5 A, 85~305 Vac Input Range, PCB Mount
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EMC-20 by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

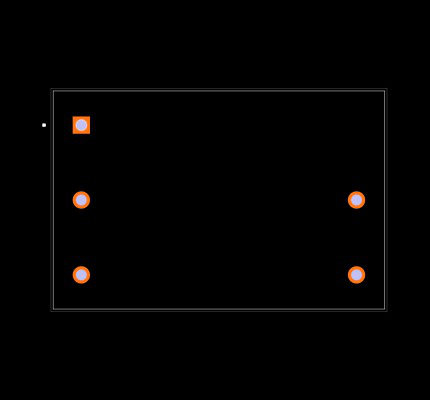

Footprint
No web preview
This Footprint is Available for

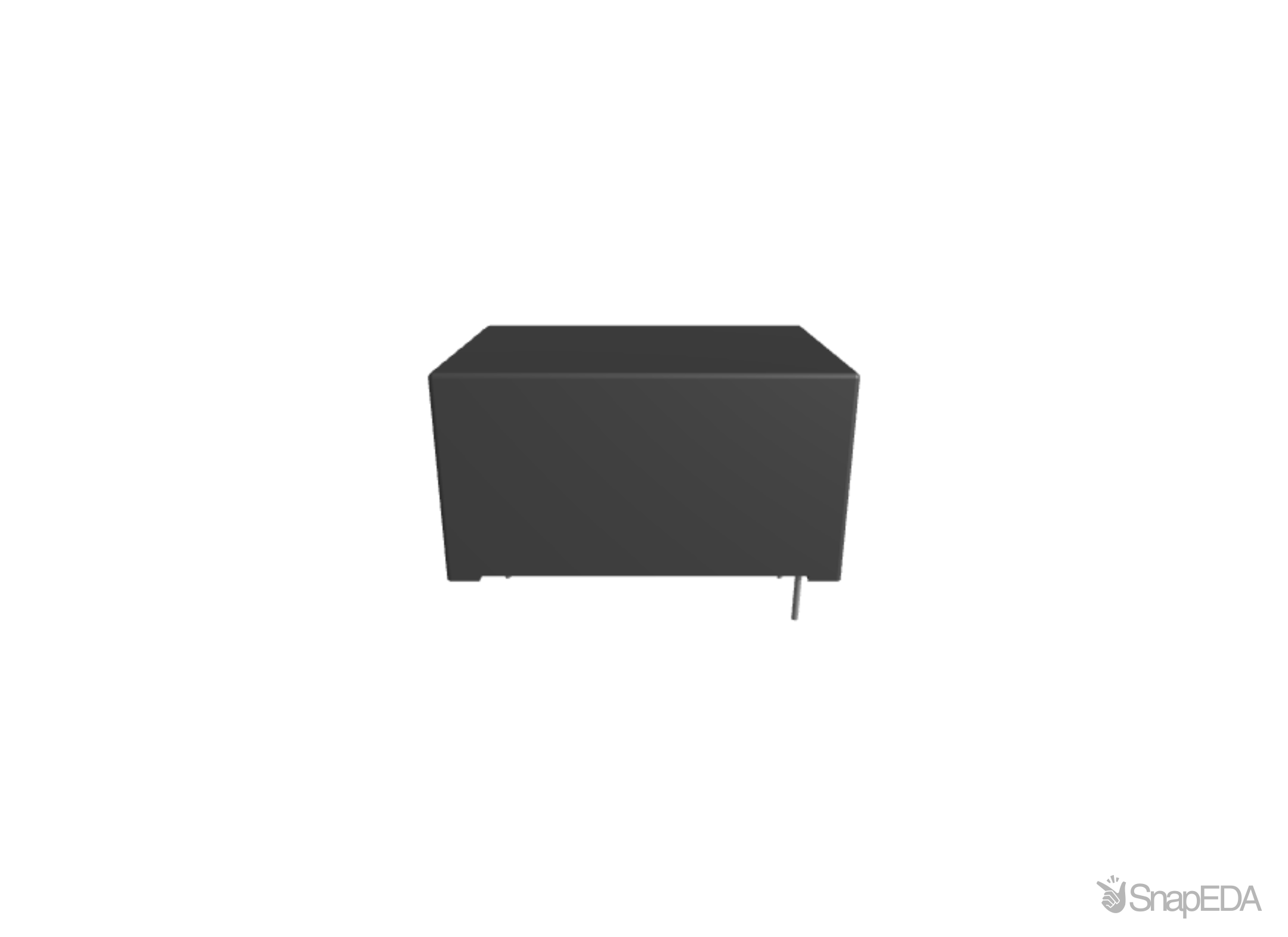

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EMC-20
| Part Name | EMC-20 |
| Manufacturer | CUI Inc. |
| Operating Temp MAX (°C) | 85 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/emc-20-series |
| Operating Temp MIN (°C) | -40 |
| Mounting Style | PCB |
| Dimensions LxWxH (mm) | 33.7 x 22.2 x 18 |
| Current Rating (A) | 1.5 |
| Dimensions LxWxH (in) | 1.32 x 0.87 x 0.7 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the EMC-20
If you experienced any issues with the symbol or footprint, please report it.
