EMK063AC6104KP-F

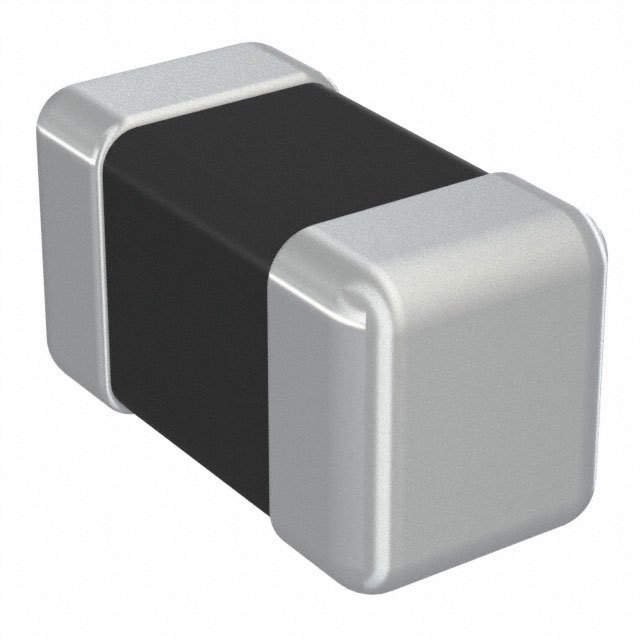

0.1 µF ±10% 16V Ceramic Capacitor X6S 0201 (0603 Metric)
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EMK063AC6104KP-F by Taiyo Yuden and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EMK063AC6104KP-F
| Part Name | EMK063AC6104KP-F |
| Manufacturer | Taiyo Yuden |
| CapacitanceTolerance(%) | [10, -10] |
| Capacitance(pF) | 100000.0 |
| Series | M |
| RatedVoltage(V) (V) | 16 |
| TemperatureCoefficient | X6S |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 0.6 x 0.3 x 0.3 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0201 (0603M) |
| Series | M |
| Depth | 0.3 (mm) |
| Height | 0.3 (mm) |
| Capacitance | 100 (nF) |
| Length | 0.6 (mm) |
| Voltage (V) | 16 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Solder |
| Dielectric | X6S |
