EN3P4MRAPCX
EN3 Series,4 Pole Right Angle Pmnt Conn Plug,20.62mm Shell Size,Male Contacts | Switchcraft EN3P4MRAPCX
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EN3P4MRAPCX by SWITCHCRAFT and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

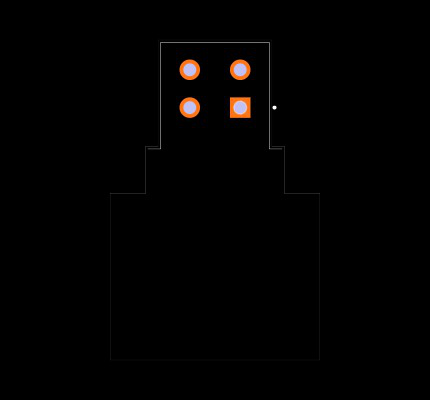

Footprint
No web preview
This Footprint is Available for

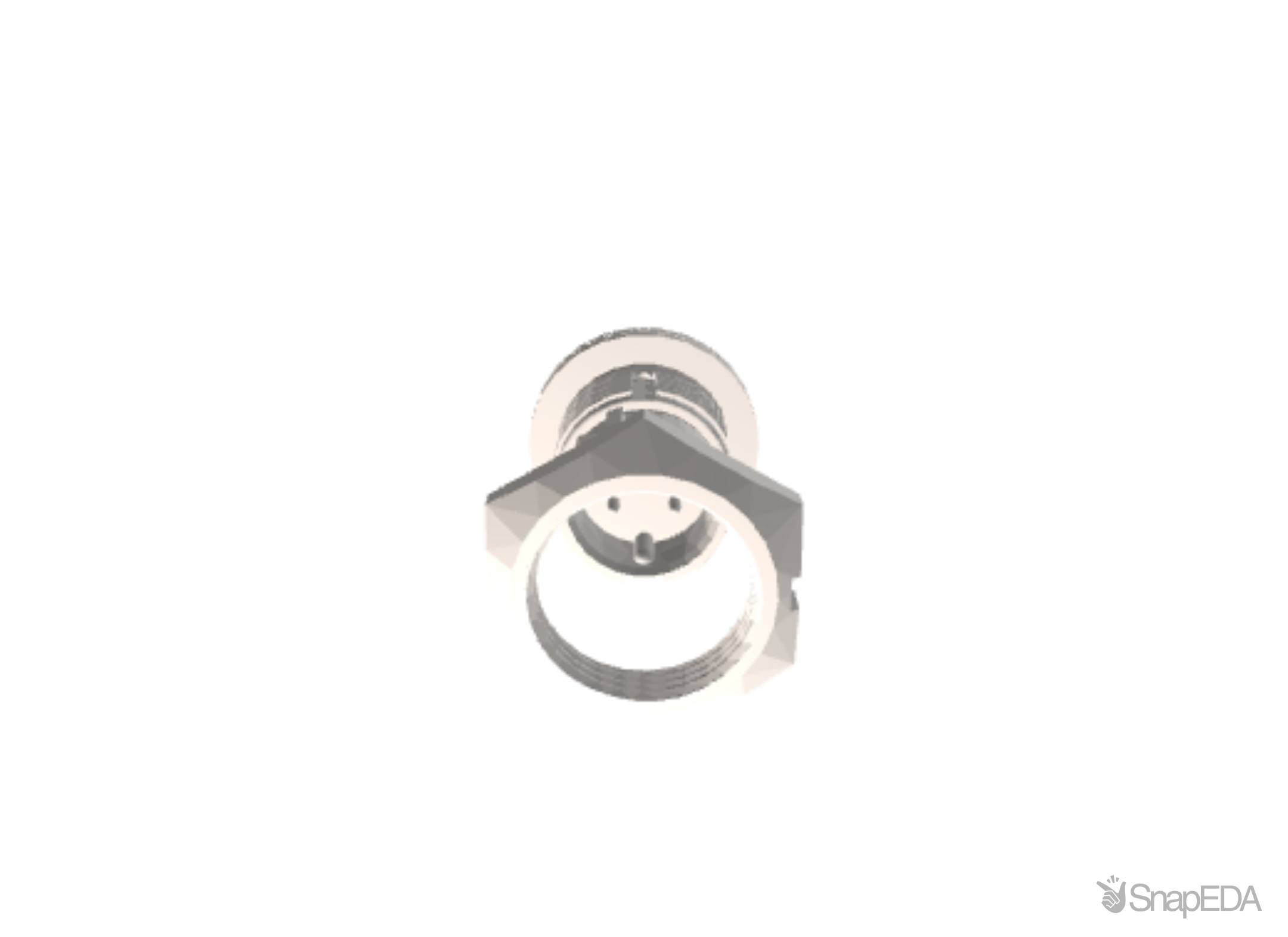

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EN3P4MRAPCX
| Part Name | EN3P4MRAPCX |
| Manufacturer | Switchcraft Inc. |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 7.5 (A) |
| Mating Type | Bayonet |
| Mounting Type | Panel Mount |
| Ip Rating | IP68, IP69K |
| Series | EN3 |
| Body Orientation | Right Angle |
| Voltage Rating (V) | 600.0 V |
| Plug Socket | Plug |
| Contact Gender | Male |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Contact Plating | Gold |
| Shell Size | 20.62 |
| Number Of Contacts | 4 |
| Connector Size | Standard |
| Contact Material | Copper |
No issues have been reported for the EN3P4MRAPCX
