EP9WS150RJ
EP(Small) Series Axial Fixed Resistor 150Ohms +/-5% 9W +/-300ppm/degC | TE Connectivity EP9WS150RJ
Availability: In Stock
Package Type: AXIAL
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EP9WS150RJ by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

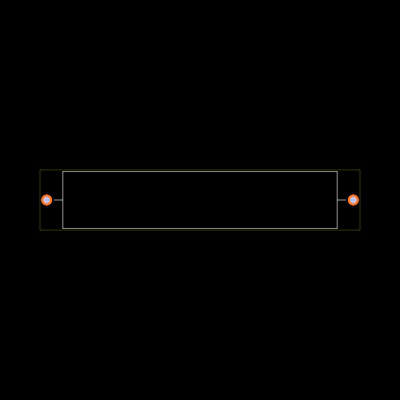

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EP9WS150RJ
| Part Name | EP9WS150RJ |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Mount Style | Axial Leaded |
| Dimensions | 40 x 8.5 |
| Voltage Rating (V) | 500 |
| Number of Terminations | 2 |
| Resistor Type | Power Resistor |
| Operating Temperature Range | -55 – 155 |
| Packaging Method | Loose Piece - Box |
| Resistance | 150 |
| Temperature Coefficient | ±300 |
| Element Type | Wirewound |
| TE Internal Number | 2176085-8 |
| Element Material | Ceramic Composition |
| Number of Resistors | 1 |
| Termination Type | Tinned Copper Leads |
| Power Rating | 9 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| Resistance Class | Up to 1kΩ |
| Lead Type | Axial Leaded |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the EP9WS150RJ by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
939
|
|
Visit Site | |
|
★ Featured
|
989
|
|
Visit Site | |
| Onlinecomponents |
200
|
|
Visit Site | |
| Verical |
1,000
|
|
Visit Site |
No issues have been reported for the EP9WS150RJ
If you experienced any issues with the symbol or footprint, please report it.
