ERJP6WF1202V

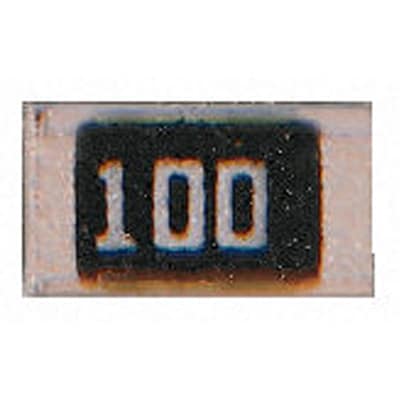

Thick Film Smnt Fixed Resistor 0805 Case 12kOhm +/-1% 0.5W +/-200ppm/degC | Panasonic Electronic Components ERJP6WF1202V
Availability: In Stock
Package Type: 2012
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ERJP6WF1202V by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

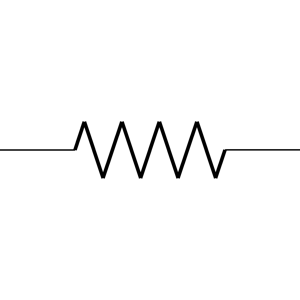

Symbol
No web preview
This Symbol is Available for

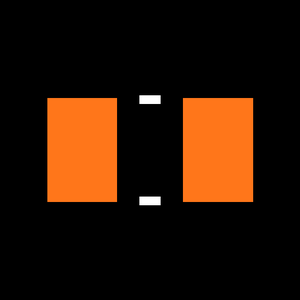

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ERJP6WF1202V
| Part Name | ERJP6WF1202V |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | ERJP6W |
| Resistance | 12 (kΩ) |
| Temperature Coefficient | ±200 (ppm/°C) |
| Technology | Thick Film |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.5 (W) |
| Maximum Operating Temperature | +155 (°C) |
| Tolerance | ±1 (%) |
| Automotive Standard | AEC-Q200 |
| Package/Case | 0805 (2012M) |
