ERZ-VF2M680
Series/Type: Varistor SMD type Series VF, Varistor Voltage (V): 68, Varistor Voltage (Range) (V): 61 - 75, Maximum Allowable Voltage ACrms (V): 40, Maximum Allowable Voltage DC (V): 56, Maximum Energy (2ms) (J): 2.5, Maximum Peak Current (8/20 µs) (A): 125
Availability: In Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ERZ-VF2M680 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

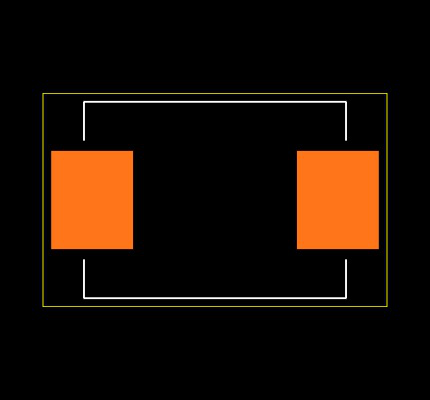

Footprint
