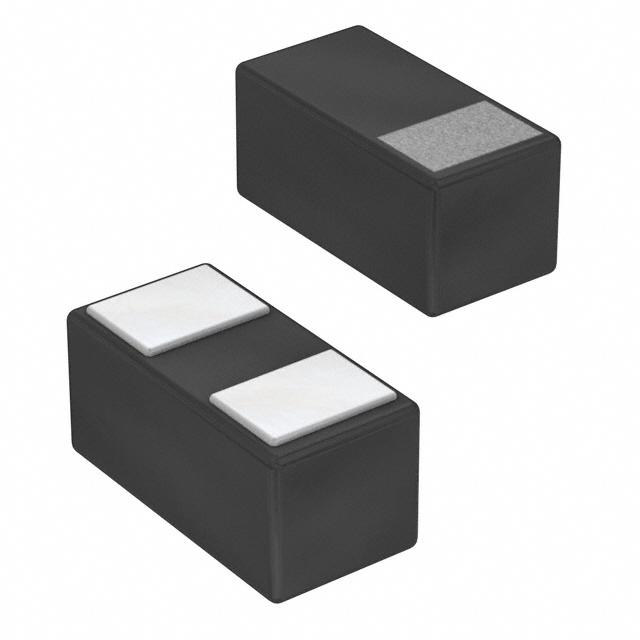

ESDA7P120-1U1M
11.5V Clamp 120A (8/20µs) Ipp Tvs Diode Surface Mount 1610
Availability: Out of Stock
Package Type: 1610
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ESDA7P120-1U1M by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

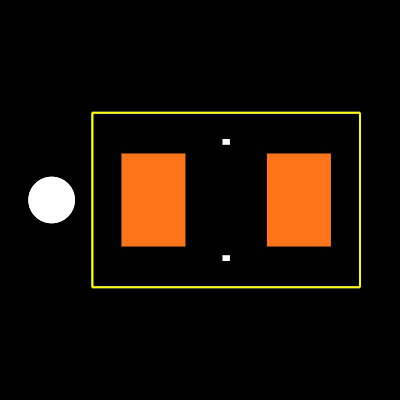

Footprint
No web preview
This Footprint is Available for

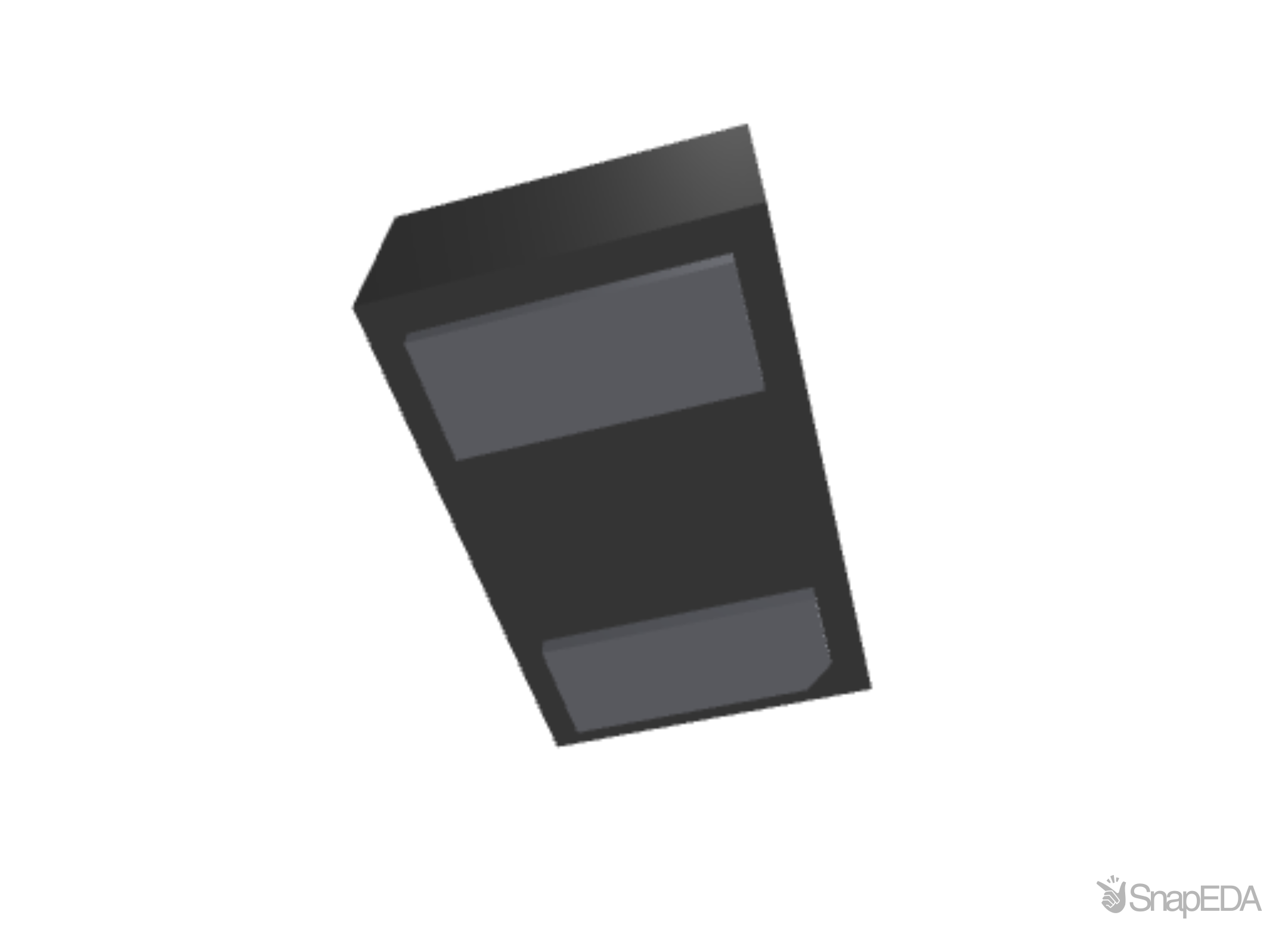

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ESDA7P120-1U1M
| Part Name | ESDA7P120-1U1M |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 5.5 (V) |
| Dimensions | 1.6 x 0.55 x 1 (mm) |
| Mounting Type | Surface Mount |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current (A) | 1.5 (µA) |
| Zener Type | Uni-Directional |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Package Type | QFN |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 2 |
No issues have been reported for the ESDA7P120-1U1M
