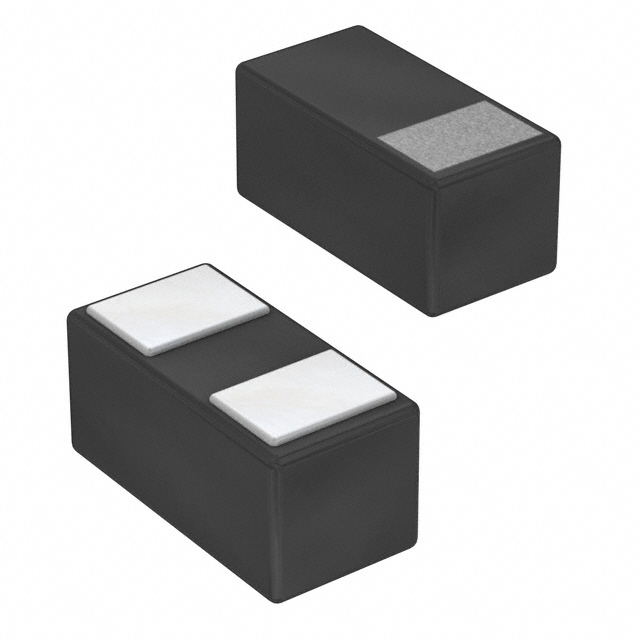

ESDA8P80-1U1M
13.2V Clamp 80A (8/20µs) Ipp Tvs Diode Surface Mount 1610
Availability: In Stock
Package Type: 1610
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ESDA8P80-1U1M by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

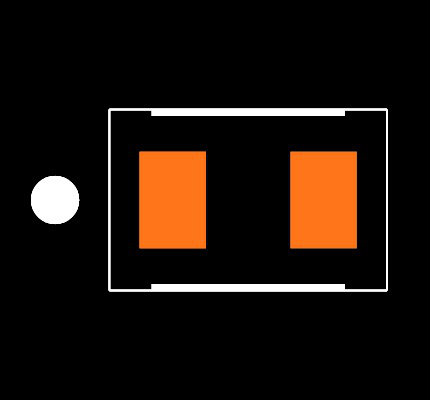

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ESDA8P80-1U1M
| Part Name | ESDA8P80-1U1M |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 6.3 (V) |
| Maximum Peak Pulse Current (A) | 80 (A) |
| Dimensions | 1.7 x 1.1 x 0.55 (mm) |
| Minimum Breakdown Voltage (V) | 6.9 (V) |
| Direction Type | Uni-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 200 (nA) |
| Esd Protection | Yes |
| Maximum Clamping Voltage (V) | 13.2 (V) |
| Width | 1.1 (mm) |
| Length | 1.7 (mm) |
| Package Type | QFN |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Height | 0.55 (mm) |
| Diode Configuration | Array |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1100 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the ESDA8P80-1U1M by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
11,875
|
|
Visit Site | |
|
★ Featured
|
4,406
|
|
Visit Site | |
|
★ Featured
|
115,002
|
3,710 x $0.08
|
Visit Site | |
| Arrow Electronics |
16,000
|
8,000 x $0.07
|
Visit Site | |
| Chip One Stop |
25
|
10 x $0.31
|
Visit Site | |
| RS UK |
300
|
|
Visit Site | |
| Verical |
16,000
|
8,000 x $0.07
|
Visit Site |
No issues have been reported for the ESDA8P80-1U1M
