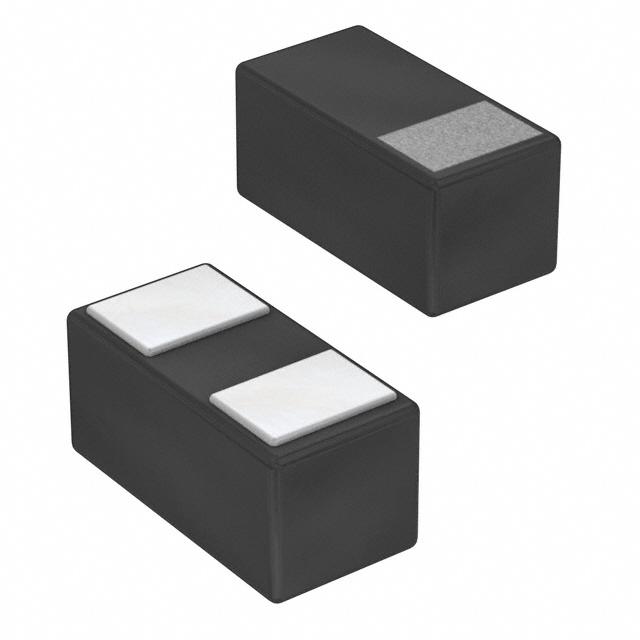

ESDARF02-1BU2CK
12V Clamp 1.5A (8/20µs) Ipp Tvs Diode Surface Mount 0201
Availability: In Stock
Package Type: 0201
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ESDARF02-1BU2CK by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

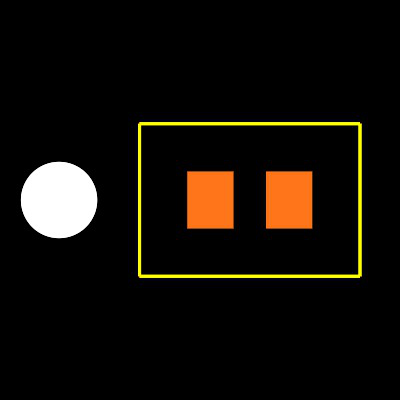

Footprint
No web preview
This Footprint is Available for

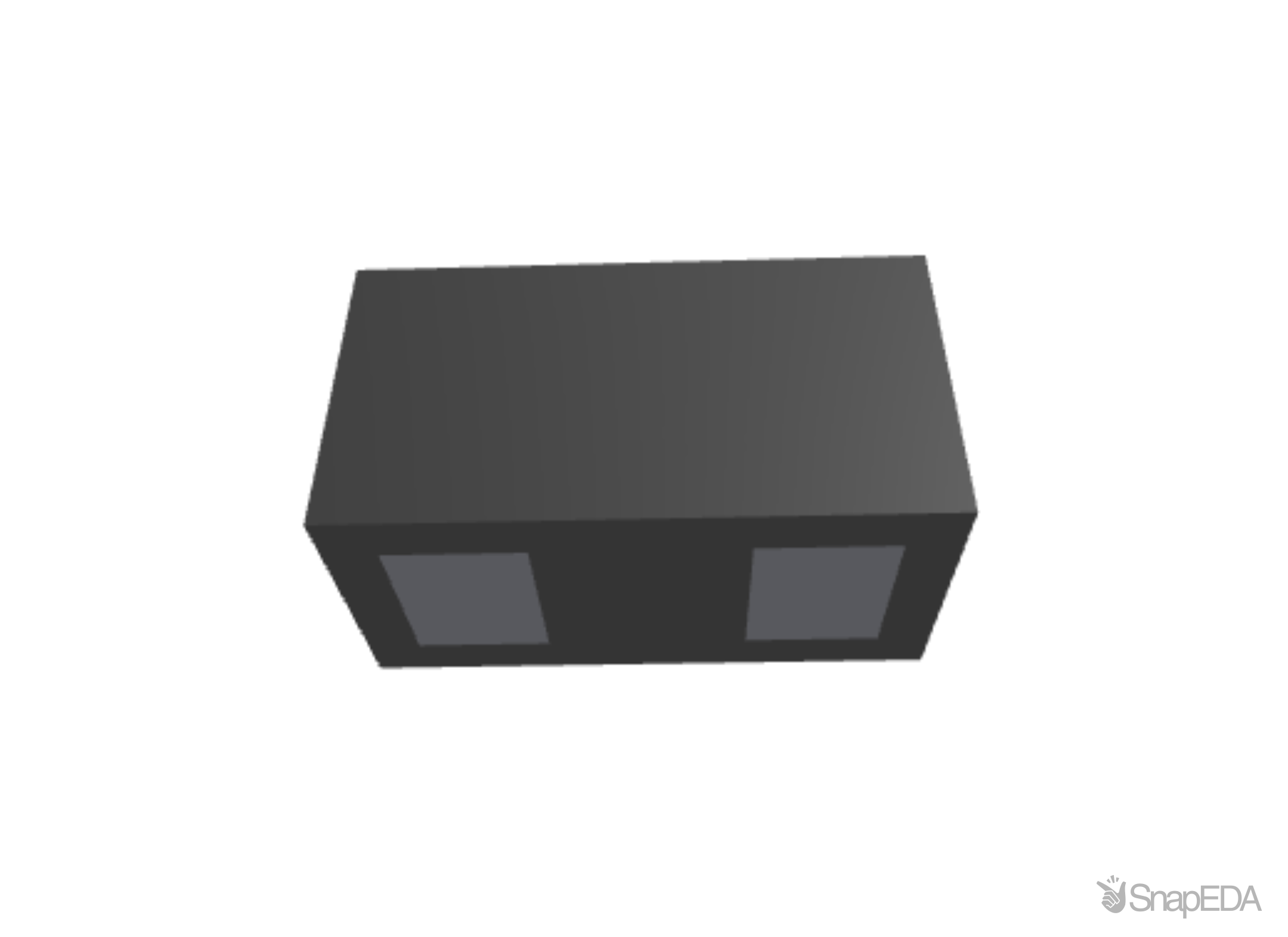

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ESDARF02-1BU2CK
| Part Name | ESDARF02-1BU2CK |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 1.5 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 3.6 (V) |
| Capacitance | 0.3 (pF) |
| Dimensions | 0.65 x 0.35 x 0.33 (mm) |
| Minimum Breakdown Voltage (V) | 5 (V) |
| Direction Type | Bi-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 100 (nA) |
| Esd Protection | Yes |
| Maximum Clamping Voltage (V) | 12 (V) |
| Width | 0.35 (mm) |
| Length | 0.65 (mm) |
| Package Type | ST-0201 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Height | 0.33 (mm) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 20 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the ESDARF02-1BU2CK by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
22
|
10 x $0.04
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| RS UK |
29,900
|
100 x $0.06
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the ESDARF02-1BU2CK
