ESW-120-33-L-D
SnapVerified

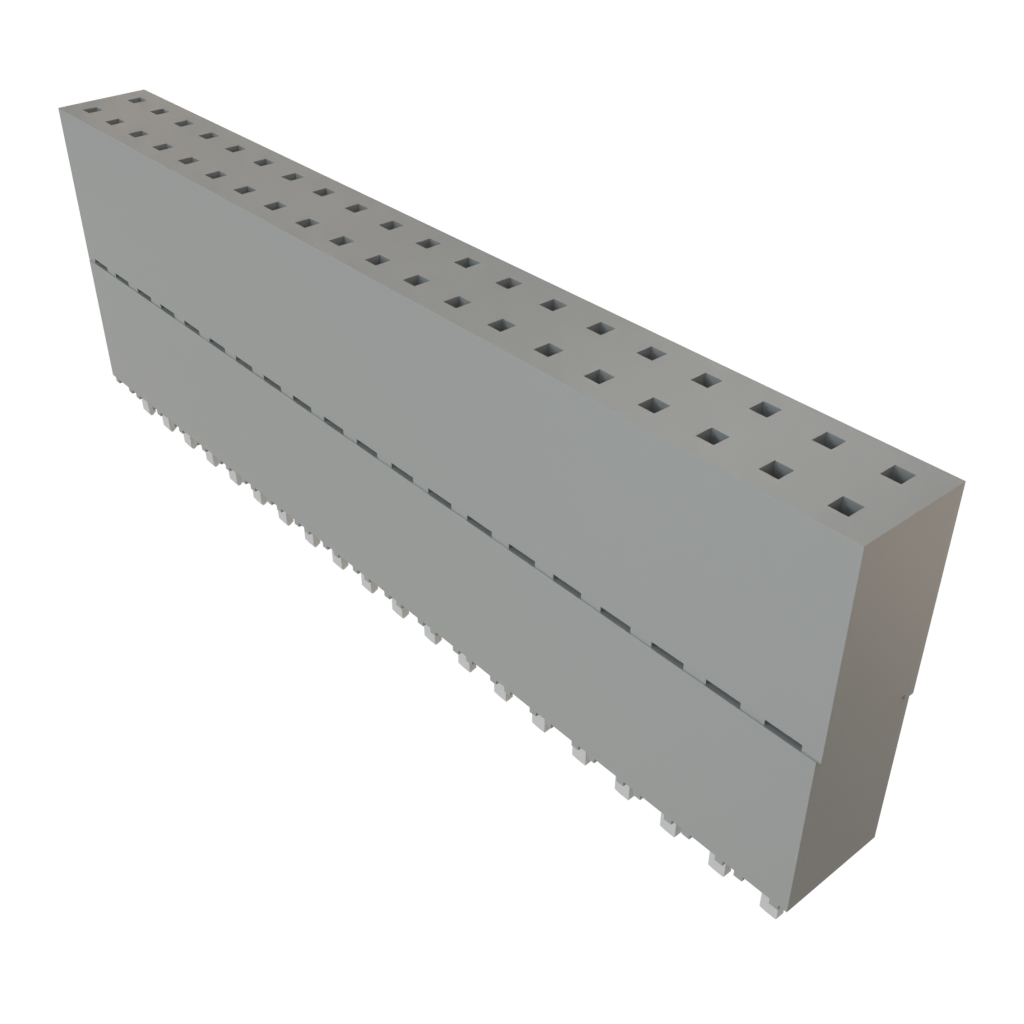

ESW - Samtec 2.54mm Elevated Socket Strip 2.29mm Contact. 16.13mm Profile (33)
Availability: In Stock
Country of Origin: United States
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ESW-120-33-L-D by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ESW-120-33-L-D
| Part Name | ESW-120-33-L-D |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | ESW |
| Country of Origin | United States |
| Packaging | Tube |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 5.2 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 515 V ac |
| Series | ESW |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Board-to-Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Pitch | 2.54 (mm) |
| Number Of Contacts | 40 |
| Type | Board to Board |
| Contact Material | Phosphor Bronze |
