ETQP5M220YFK

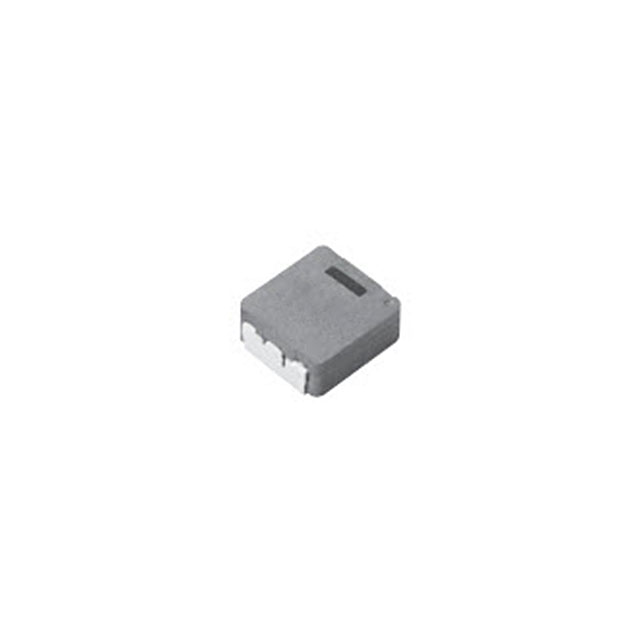

WireWound SMD Inductor w/ Metal Core,22 uH +/-20% WireWound 4.8A Idc | Panasonic Electronic Components ETQP5M220YFK
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ETQP5M220YFK by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ETQP5M220YFK
| Part Name | ETQP5M220YFK |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 70 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 8.5 x 8 x 5.4 (mm) |
| Maximum Dc Current (A) | 4.8 (A) |
| Series | ETQP5M |
| Length | 8.5 (mm) |
| Height | 5.4 (mm) |
| Depth | 8 (mm) |
| Core Material | Metal Composite |
| Inductance | 22 μH |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Package/Case | 0854 |
No issues have been reported for the ETQP5M220YFK
