ETQP5M3R3YTC

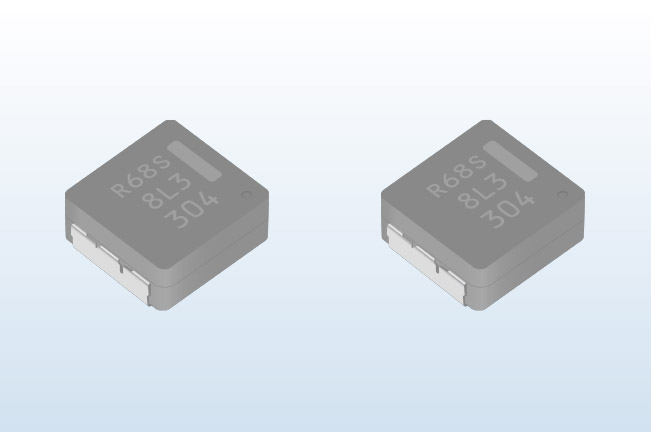

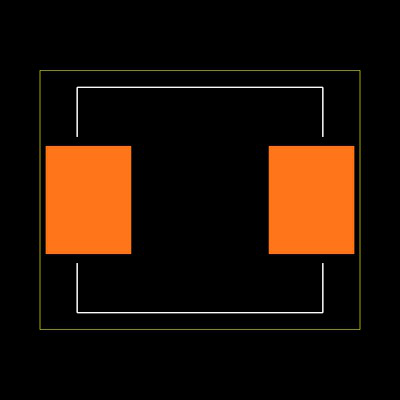

Series/Type: High Vibration Acceleration-resistant Power Choke Coil for Automotive-MS (MC type), Size [L×Ｗ] (mm): 10.0×10.9, Height (mm): 5.4, Inductance (µH): 3.3, DC Resistance [Typ.] (at 20℃) (mΩ): 7.1, DC Resistance [max.] (at 20℃) (mΩ): 7.81, Rated Current [Typ.] (ΔT=40K, FR4, t=1.6 mm, Four-layer PWB) (A): 13.1, Rated Current [Typ.] (ΔT=40K, High heat dissipation PWB) (A): 15.7, Rated Current [Typ.] (ΔL=–30%) (A): 22.7, AEC-Q200 compliant
