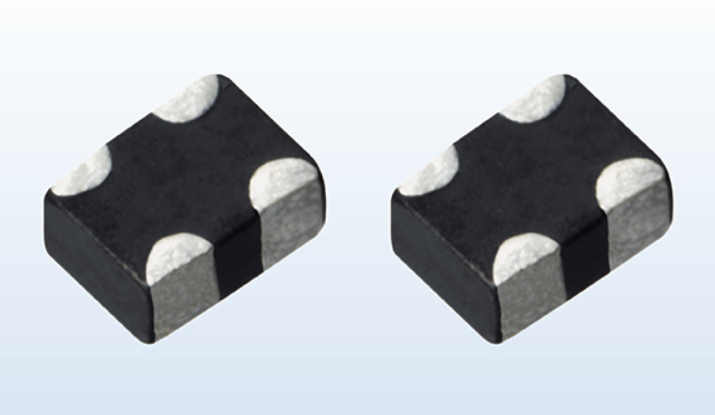

EXC24CB102U
Series/Type: 2 mode Filters(0405 small size), Size [L×W] (mm): 1.25×1.0, Height (mm): 0.5, Impedance [Common Mode] (Ω): 1000 (open mode), Rated Voltage [DC] (V): 5, Rated Current [DC] (mA): 50, DC Resistance [max.] (Ω): 1.5, Number of circuit: 1
Availability: In Stock
Package Type: 1210
CAD Models: Symbol, Footprint, 3D Model
