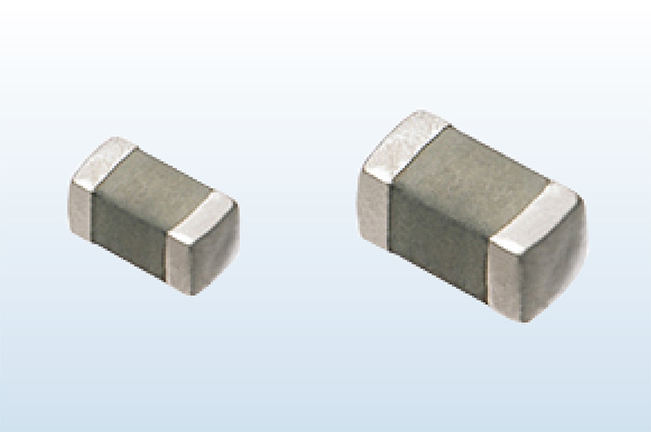

EZJS1VB822
Series/Type: Chip Varistor for ESD pulse, Type: 0603 Size, Max. Allowable Voltage (V): 6, Varistor Voltage (Range) (V): 8-15, Capacitance (pF): 8200, Capacitance (max.) (pF): -
Availability: In Stock
Package Type: 0603-2
CAD Models: Symbol, Footprint, 3D Model
