F3041A7H111054E200

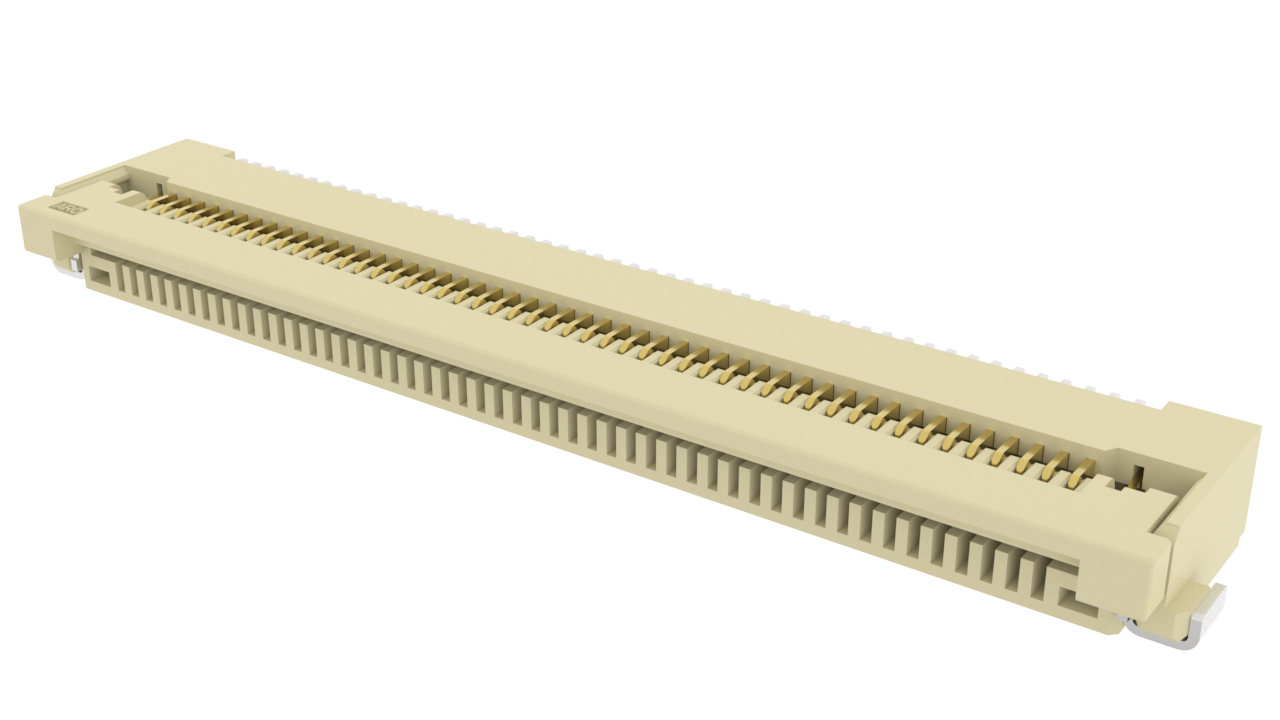

Flex Connector, Pitch=0.50mm, H=2.50mm, Right angle orientation, Flip type, ZIF, 54P, Double beam, Without Mylar
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the F3041A7H111054E200 by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

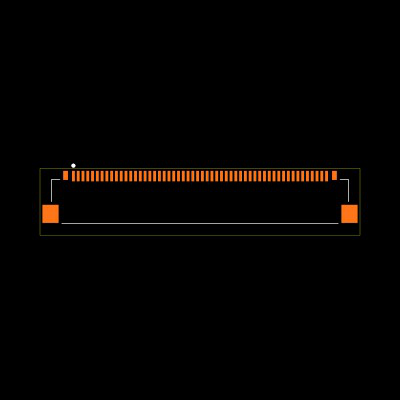

Footprint
No web preview
This Footprint is Available for

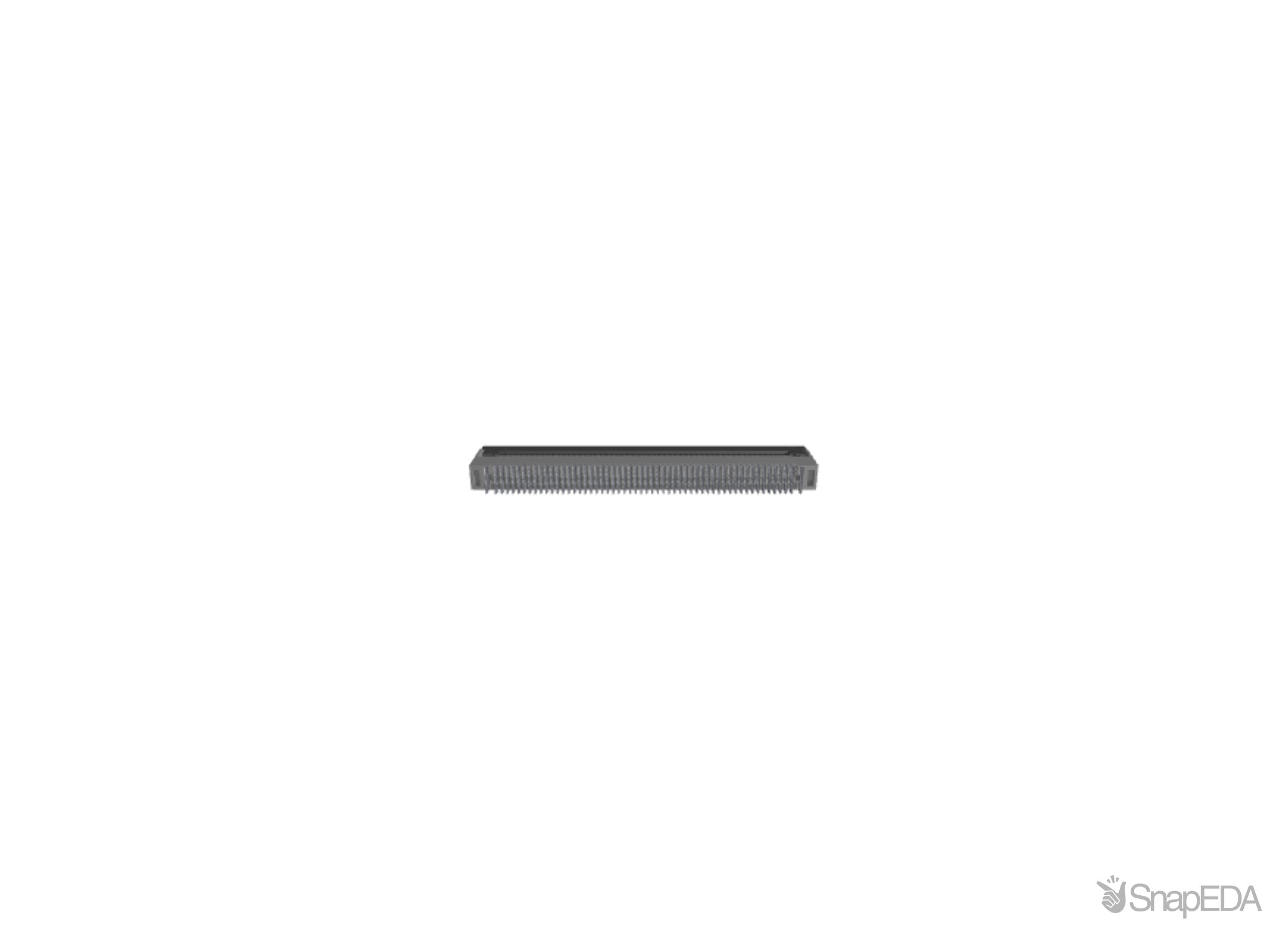

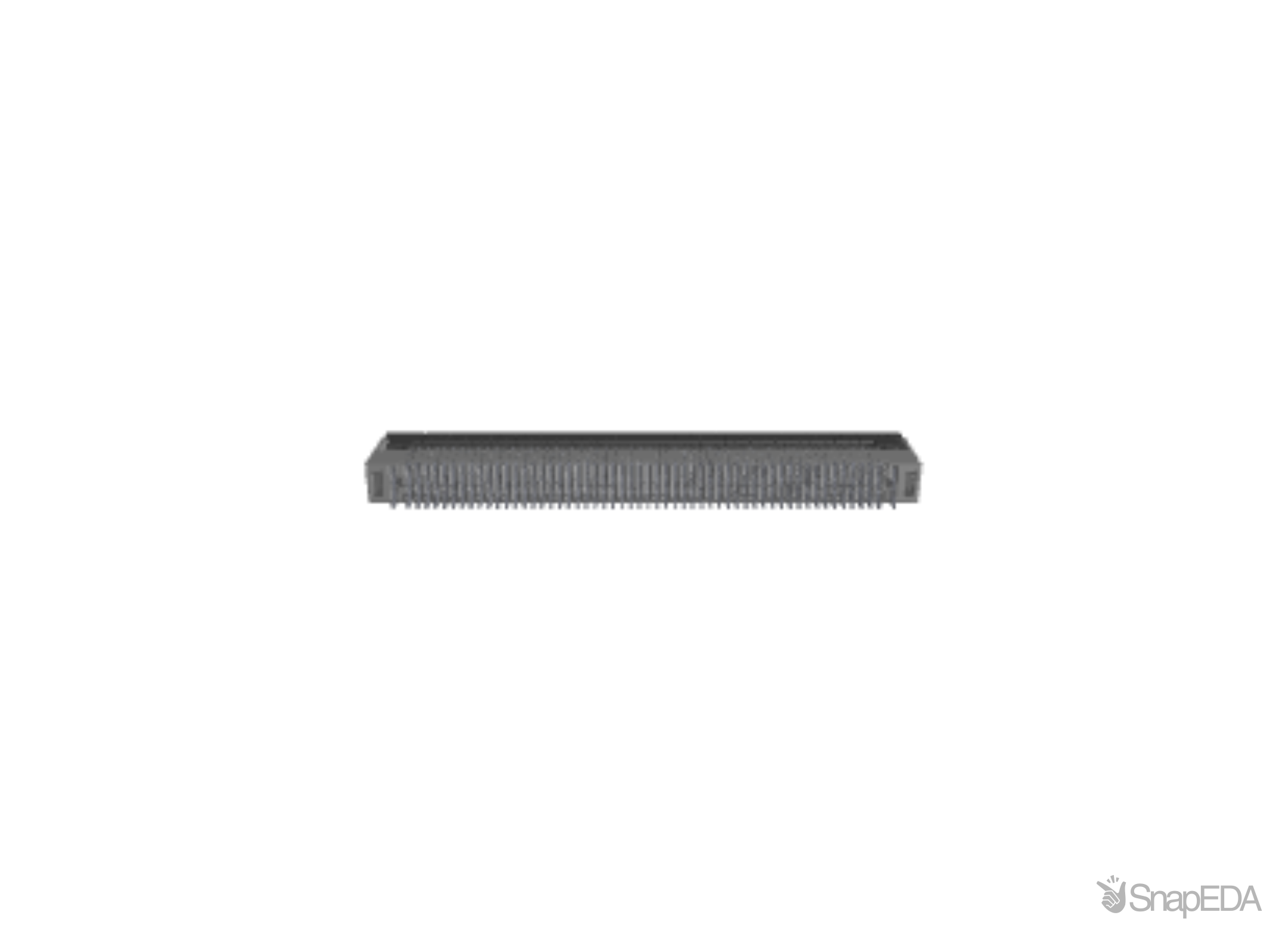

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the F3041A7H111054E200
| Part Name | F3041A7H111054E200 |
| Manufacturer | Amphenol |
| RoHS | True |
| Product Link | https://www.amphenol-cs.com/product/f3041a7h111054e200.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the F3041A7H111054E200 by Amphenol from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
9,000 x $0.65
|
Visit Site | |
| Mouser |
|
9,000 x $0.60
|
Visit Site |
No issues have been reported for the F3041A7H111054E200
If you experienced any issues with the symbol or footprint, please report it.
