F931A476KAA
Tantalum - NTP Conformal47 uF,10 V | AVX F931A476KAA
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the F931A476KAA by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

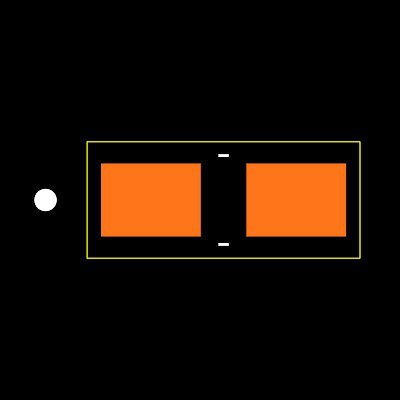

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the F931A476KAA
| Part Name | F931A476KAA |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dissipation Factor | 40 (%) |
| Dimensions | 3.2 x 1.6 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 1206 (3216M) |
| Series | F93 |
| Minimum Operating Temperature | -55 (°C) |
| Equivalent Series Resistance | 2 (Ω) |
| Height | 1.6 (mm) |
| Capacitance | 47 (µF) |
| Length | 3.2 (mm) |
| Technology | Electrolytic |
| Voltage (V) | 10 (V dc) |
| Leakage Current (A) | 4.7 μA |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMD |
| Polarised | Polar |
| Dielectric Material Family | Tantalum |
