F931C475KAA

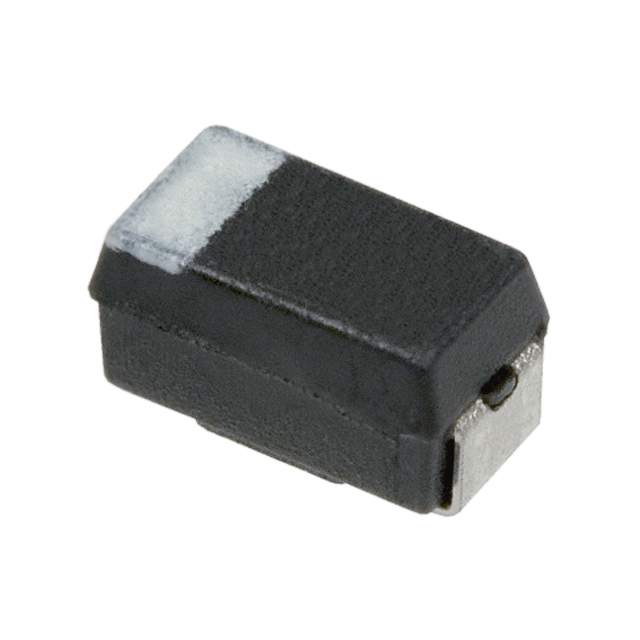

Tantalum - NTP Conformal4.7 uF,16 V | AVX F931C475KAA
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the F931C475KAA by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

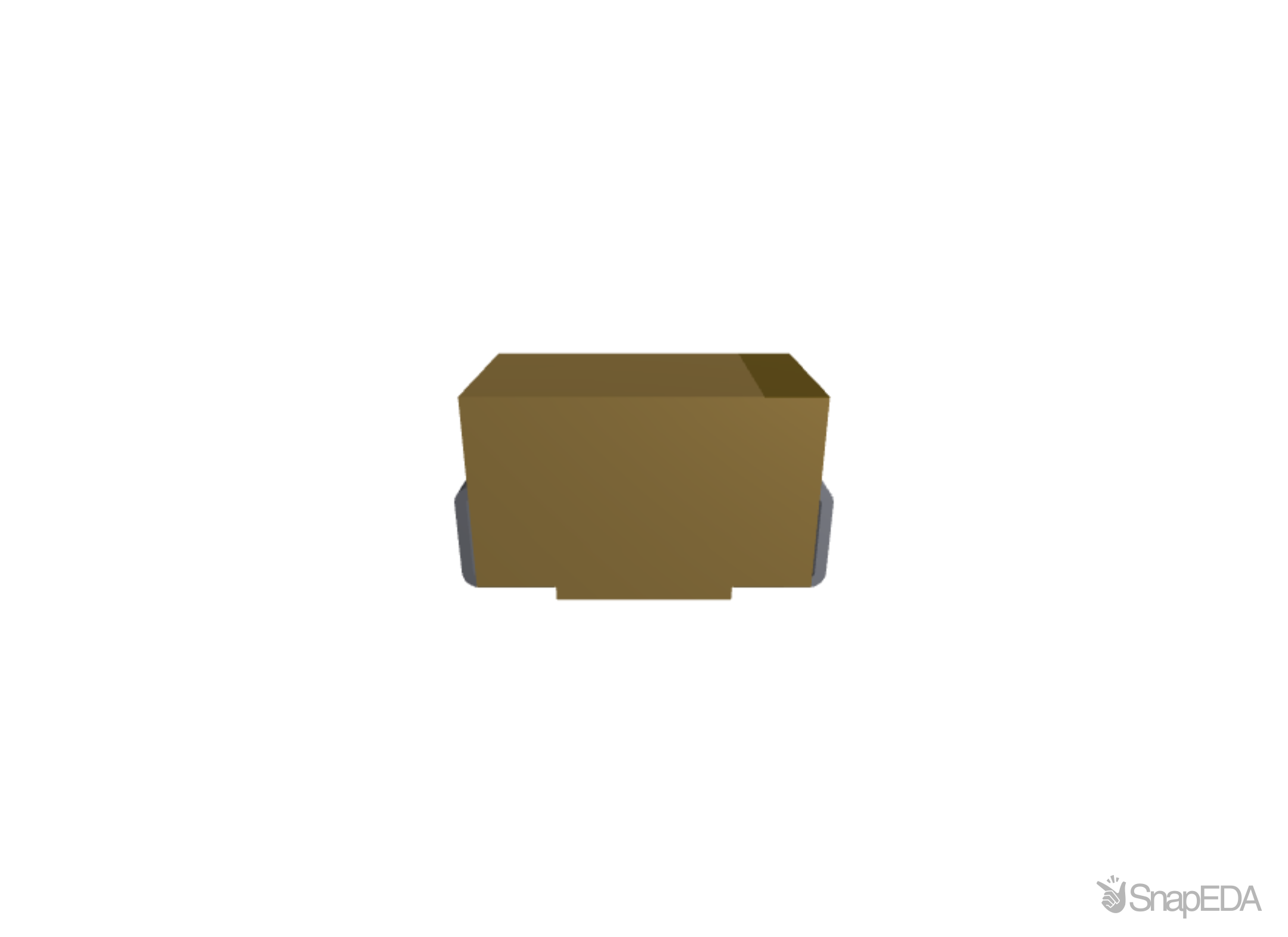

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the F931C475KAA
| Part Name | F931C475KAA |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.2 x 1.6 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 1206 (3216M) |
| Series | F93 |
| Leakage Current (A) | 0.8 μA |
| Dissipation Factor | 6 (%) |
| Height | 1.6 (mm) |
| Capacitance | 4.7 (µF) |
| Length | 3.2 (mm) |
| Dielectric Material Family | Tantalum |
| Equivalent Series Resistance | 4 (Ω) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125 (°C) |
| Technology | Electrolytic |
| Terminal Type | SMD |
| Polarised | Polar |
| Voltage (V) | 16 (V dc) |
Inventory for the F931C475KAA by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
11,353
|
|
Visit Site | |
|
★ Featured
|
19,833
|
|
Visit Site | |
|
★ Featured
|
2,060
|
990 x $0.30
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
684
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| TME |
|
2,000 x $0.31
|
Visit Site | |
| element14 Singapore |
684
|
|
Visit Site |
No issues have been reported for the F931C475KAA
