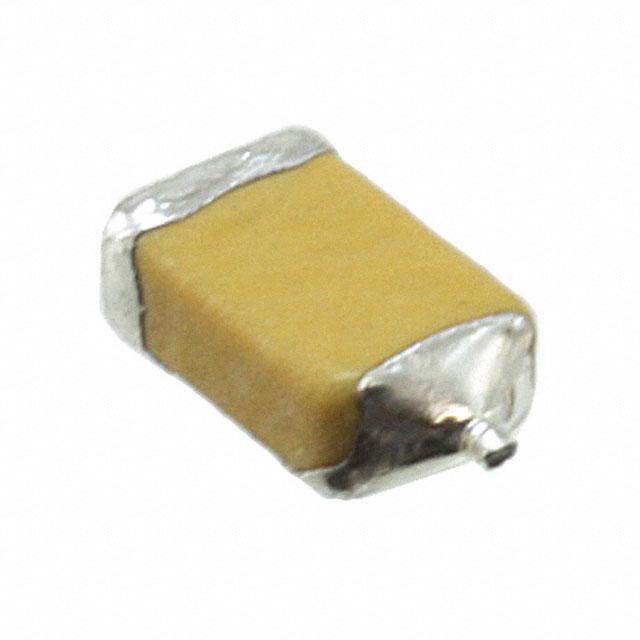

F951E475MSAAQ2
Tantalum - NTP Conformal,4.7 uF,25 V | AVX F951E475MSAAQ2
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the F951E475MSAAQ2 by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

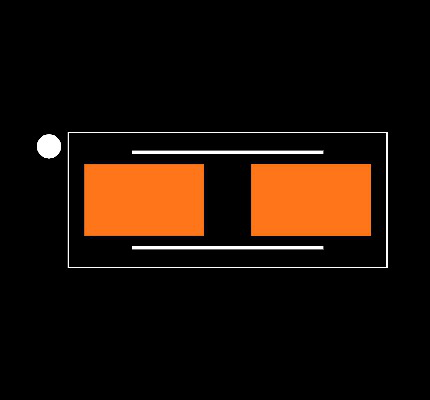

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the F951E475MSAAQ2
| Part Name | F951E475MSAAQ2 |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tolerance Plus | +20 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Tolerance Minus | -20 (%) |
| Package Case | 3216-12 |
| Series | F95 |
| Length | 3.2 (mm) |
| Equivalent Series Resistance | 4 (Ω) |
| Height | 1 (mm) |
| Capacitance | 4.7 (µF) |
| Depth | 1.6 (mm) |
| Dimensions | 3.2 x 1.6 x 1 (mm) |
| Technology | Electrolytic |
| Dissipation Factor | 8 (%) |
| Leakage Current (A) | 1.2 μA |
| Electrolyte Type | Solid |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Terminal Type | Surface Mount |
| Voltage (V) | 25 (V dc) |
