FCR1206J22R
Res 1206 22 Ohm 5% 1/8W ±500ppm/°C Molded SMD SMD T/R
Availability: In Stock
Package Type: 3216
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FCR1206J22R by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

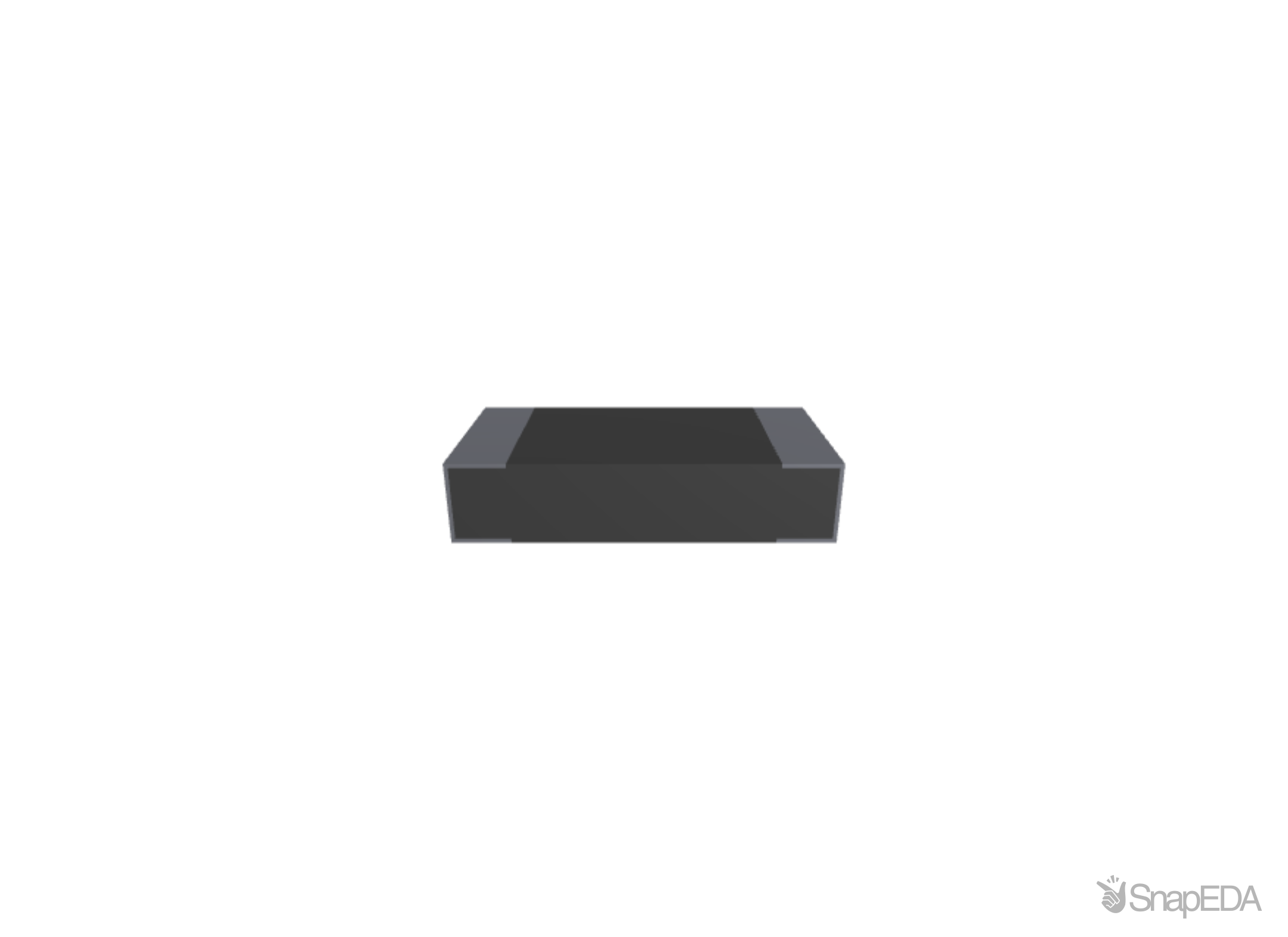

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FCR1206J22R
| Part Name | FCR1206J22R |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 3.2 x 1.6 x .6 |
| Package | 1206 |
| Resistance Range | Up to 1kΩ |
| Resistor Type | Fusible Resistor |
| Size Code | 1206 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 1879229-1 |
| Temperature Coefficient | ±500 |
| Resistance | 22 |
| Number of Resistors | 1 |
| Element Type | Thick Film |
| Number of Terminations | 2 |
| Termination Type | Solder |
| Power Rating | .125 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
