FDC610PZ
P-Channel 30 V 4.9A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6
Availability: In Stock
Package Type: TSOT-23-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FDC610PZ by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

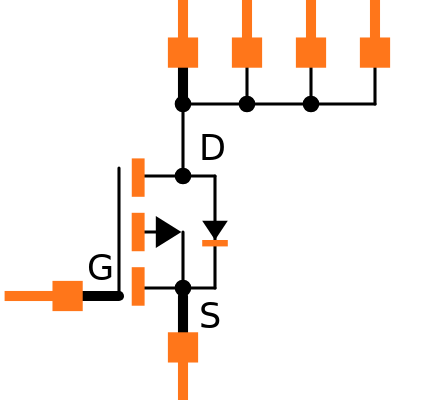

Symbol
No web preview
This Symbol is Available for

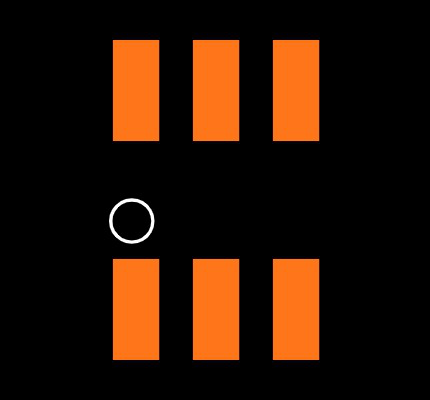

Footprint
No web preview
This Footprint is Available for

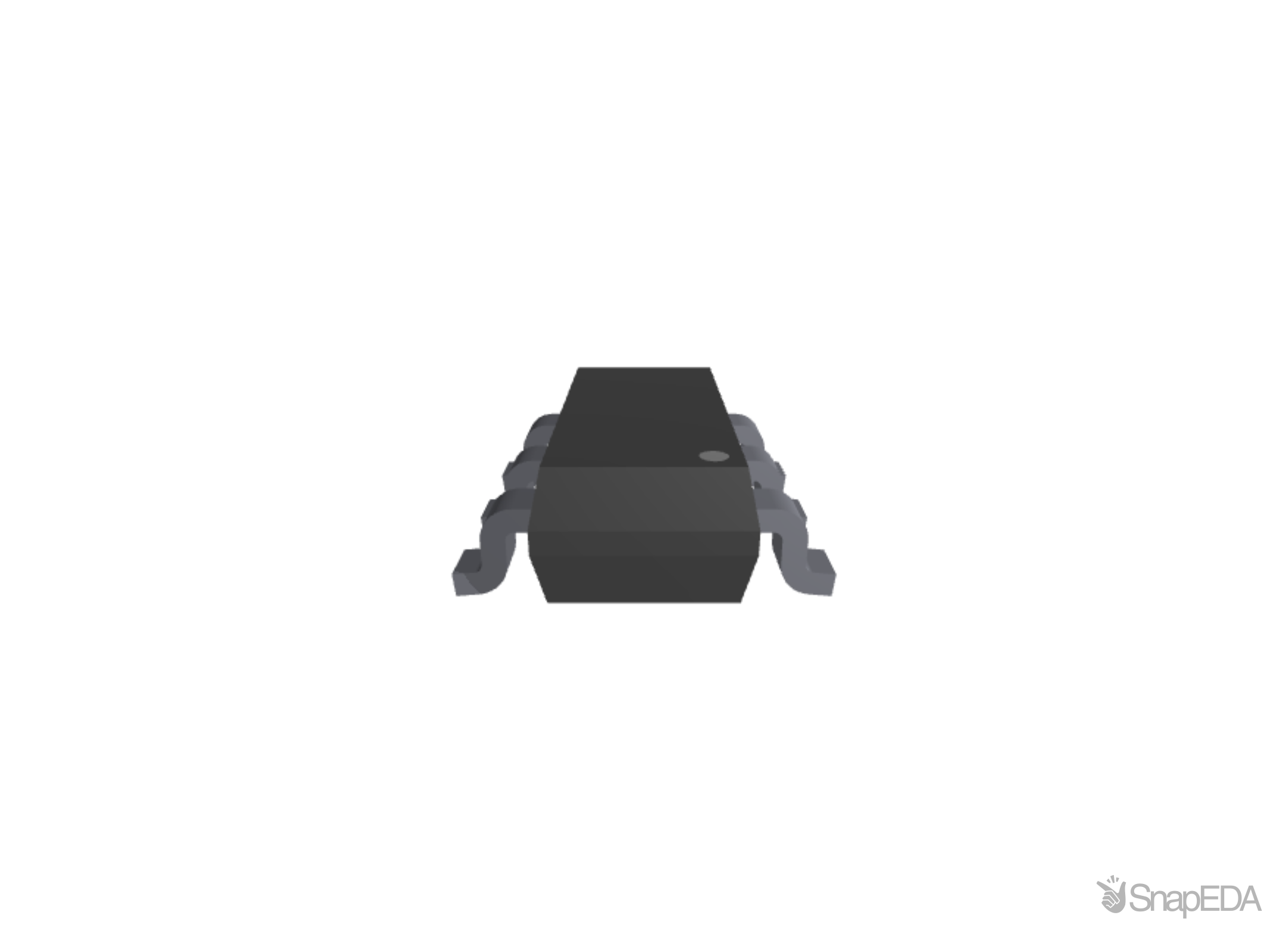

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FDC610PZ
| Part Name | FDC610PZ |
| Manufacturer | ON |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 30 V |
| Width | 1.7 (mm) |
| Maximum Continuous Drain Current (A) | 4.9 A |
| Mounting Type | Surface Mount |
| Maximum Gate Source Voltage (V) | -25 V, +25 V |
| Series | PowerTrench |
| Channel Type | P |
| Maximum Power Dissipation | 1.6 W |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Length | 3 (mm) |
| Maximum Drain Source Resistance | 75 mΩ |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 1 (V) |
| Typical Gate Charge Vgs | 17 nC @ 10 V |
| Height | 1 (mm) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 6 |
| Transistor Configuration | Single |
