FDC6329L
Power Switch/Driver 1:1 P-Channel 2.5A SuperSOT™-6
Availability: Out of Stock
Package Type: TSOT-23-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FDC6329L by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

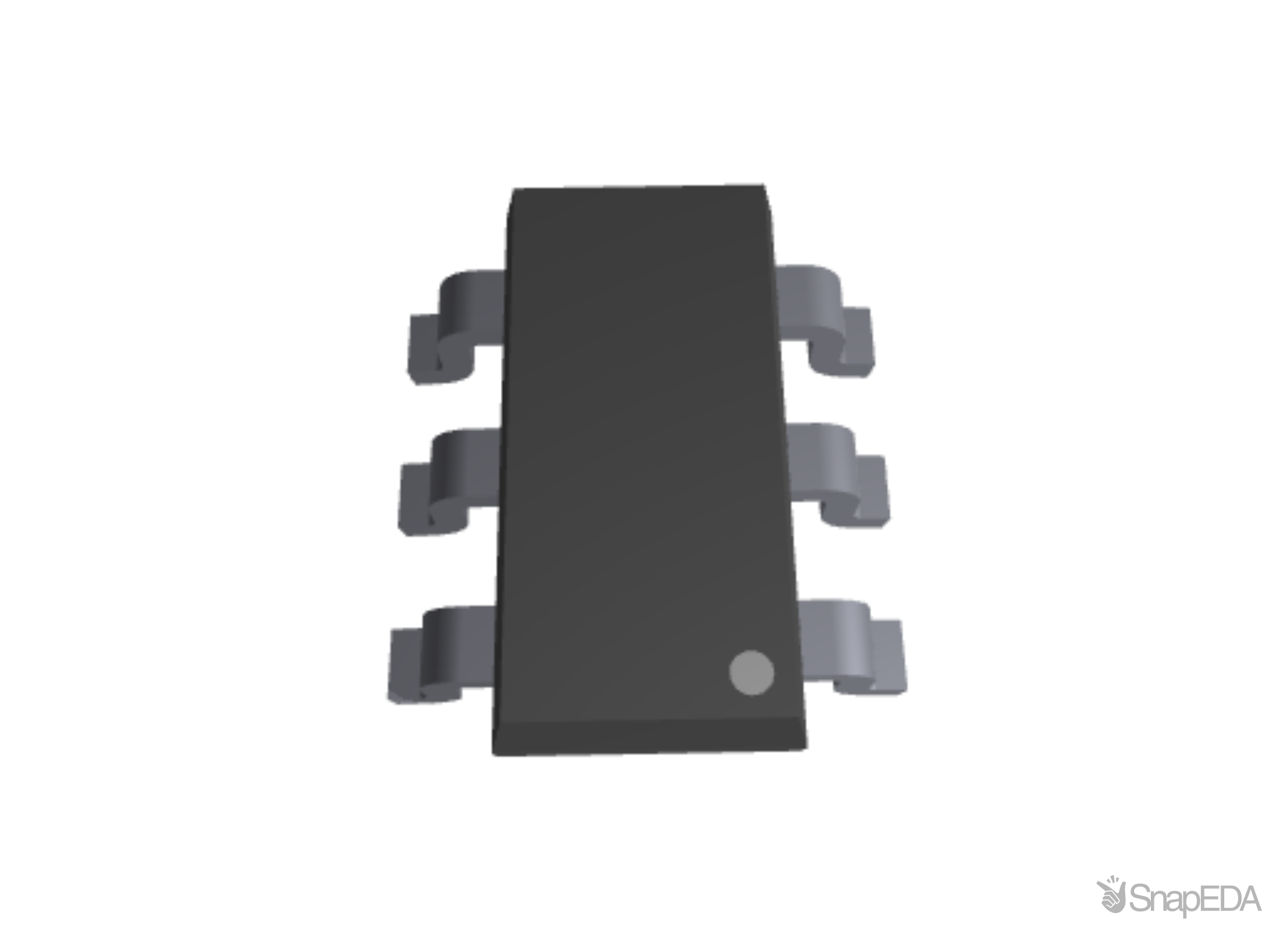

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FDC6329L
| Part Name | FDC6329L |
| Manufacturer | ON |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Current (A) | 2.5 (A) |
| Power Switch Type | Integrated Load |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage (V) | 8 V |
| Number Of Outputs | 2 |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55 °C |
| Power Rating | 0.7 (W) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 6 |
| Dimensions | 3 x 1.7 x 1 (mm) |
No issues have been reported for the FDC6329L
