FDD4141

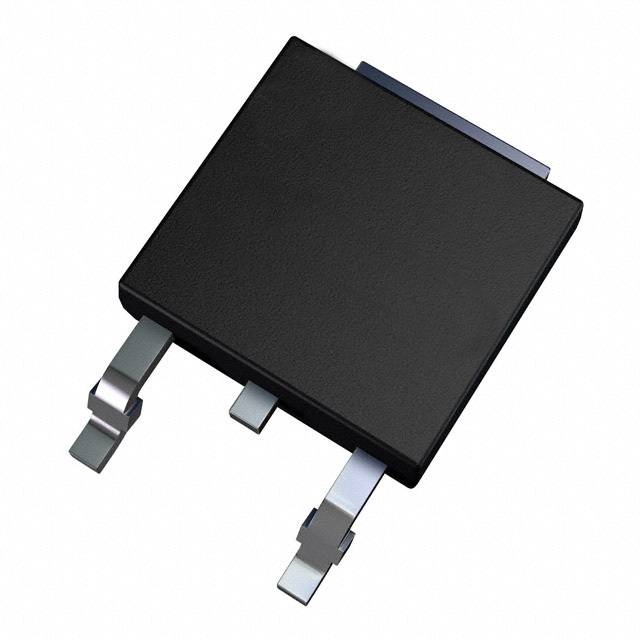

P-Channel 40V 10.8A (Ta), 50A (Tc) 2.4W (Ta), 69W (Tc) Surface Mount D-PAK (TO-252AA)
Availability: Out of Stock
Package Type: TO-252-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FDD4141 by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for
Footprint

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the FDD4141
Part Name | FDD4141 |
Manufacturer | onsemi |
RoHS | True |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Pin Count | 3 |
Maximum Drain Source Voltage (V) | 40 V |
Maximum Continuous Drain Current (A) | 10.8 A |
Mounting Type | Surface Mount |
Maximum Gate Source Voltage (V) | -20 V, +20 V |
Series | PowerTrench |
Maximum Power Dissipation | 69 W |
Transistor Material | Si |
Channel Mode | Enhancement |
Height | 2.39 (mm) |
Width | 6.22 (mm) |
Length | 6.73 (mm) |
Package Type | DPAK (TO-252) |
Number Of Elements Per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Minimum Gate Threshold Voltage (V) | 1 (V) |
Typical Gate Charge Vgs | 36 nC @ 10 V |
Channel Type | P |
Maximum Operating Temperature | +150 °C |
Maximum Drain Source Resistance | 18.7 mΩ |
Transistor Configuration | Single |
