FDH300ATR
Sourced from Process 1M. See MMBD1501/A-1505/A for characteristics.
Availability: Out of Stock
Package Type: DO-35
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FDH300ATR by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

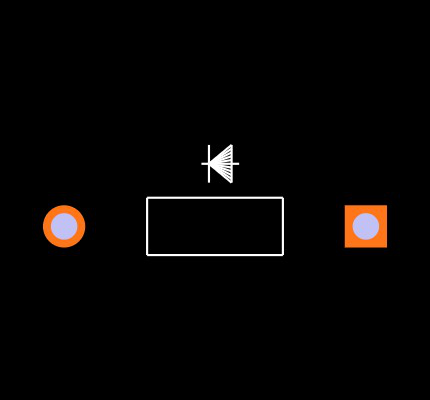

Footprint
No web preview
This Footprint is Available for

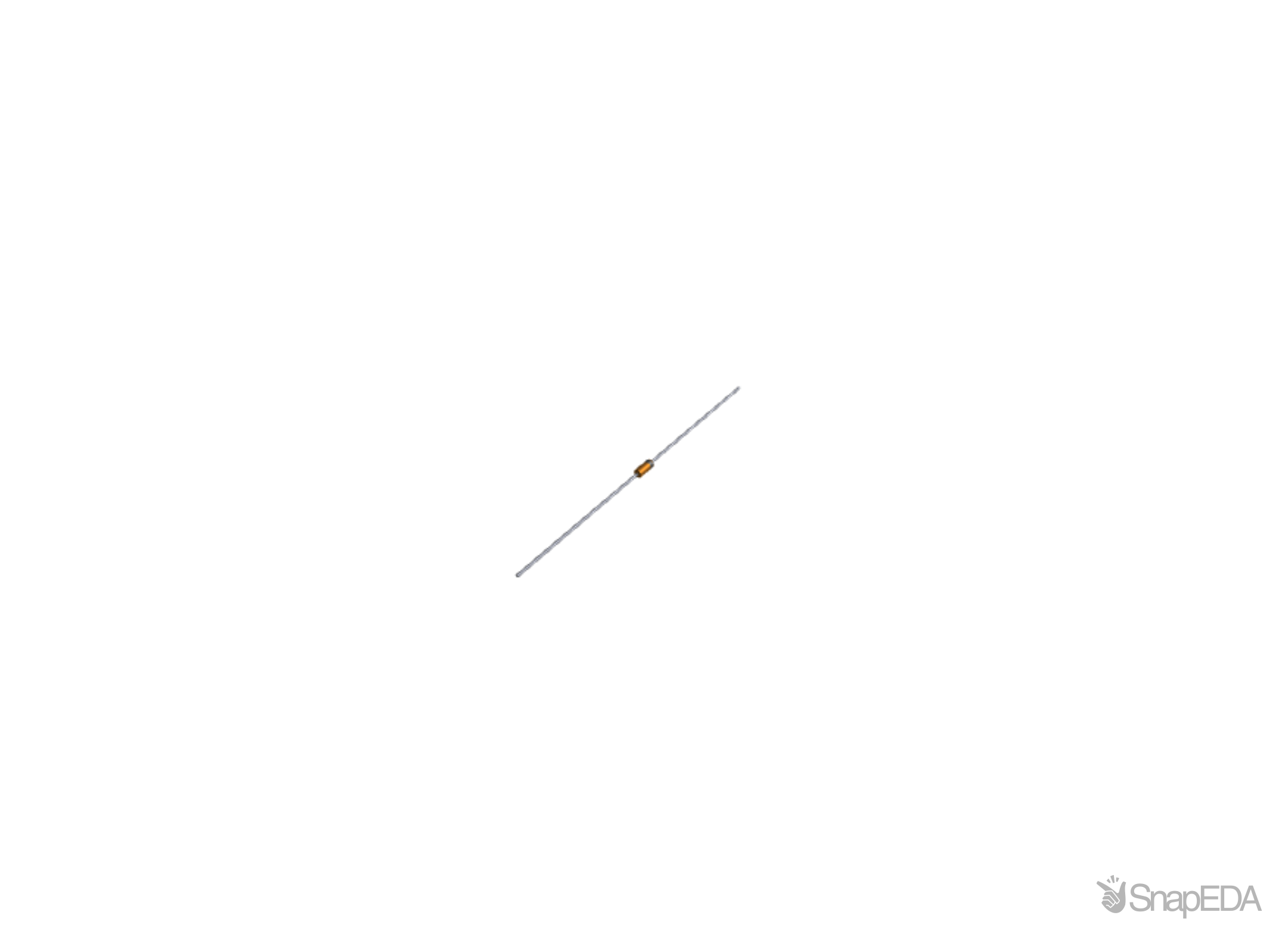

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FDH300ATR
| Part Name | FDH300ATR |
| Manufacturer | ON |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 1.5 (mm) |
| Dimensions | 1.5 (Dia.) x 3.3 (mm) |
| Mounting Type | Surface Mount |
| Diode Configuration | Single |
| Maximum Forward Voltage Drop (V) | 1 (V) |
| Diode Technology | Silicon Junction |
| Length | 3.3 (mm) |
| Package Type | SOD-80 |
| Number Of Elements Per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Pin Count | 2 |
No issues have been reported for the FDH300ATR
If you experienced any issues with the symbol or footprint, please report it.
