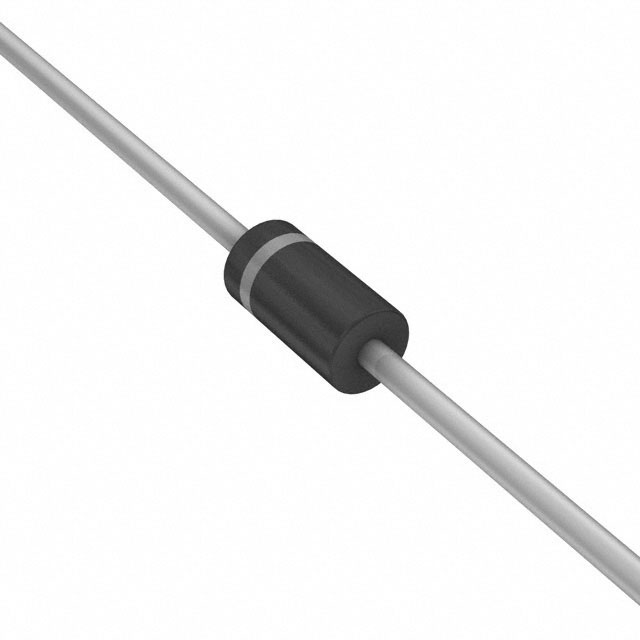

FDH333TR
Diode Standard 125 V 200mA Through Hole DO-35
Availability: Out of Stock
Package Type: DO-35
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FDH333TR by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FDH333TR
| Part Name | FDH333TR |
| Manufacturer | ON |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 1.91 (mm) |
| Mounting Type | Through Hole |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop (V) | 1.15 (V) |
| Rectifier Type | General Purpose |
| Maximum Continuous Forward Current (A) | 500 (mA) |
| Package Type | DO-35 |
| Peak Reverse Repetitive Voltage (V) | 125 (V) |
| Diode Type | Rectifier |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 4 (A) |
| Number Of Elements Per Chip | 1 |
No issues have been reported for the FDH333TR
