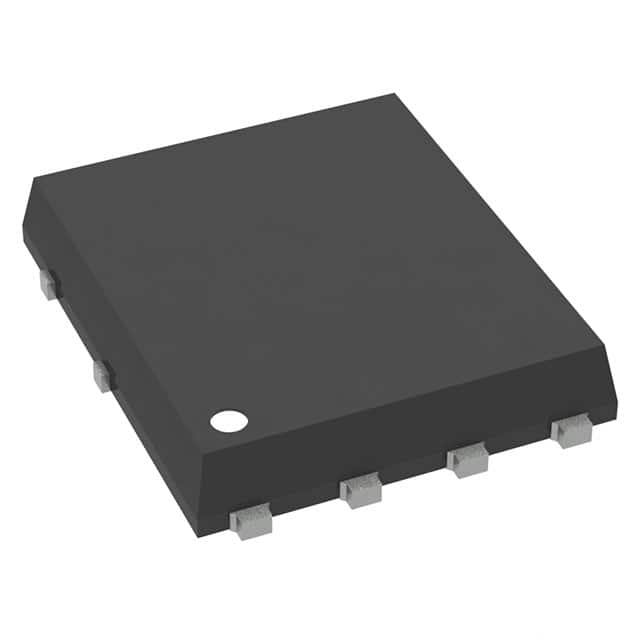

FDMS86101
N-Channel 100 V 12.4A (Ta), 60A (Tc) 2.5W (Ta), 104W (Tc) Surface Mount 8-PQFN (5x6)
Availability: Out of Stock
Package Type: POWERTDFN-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FDMS86101 by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

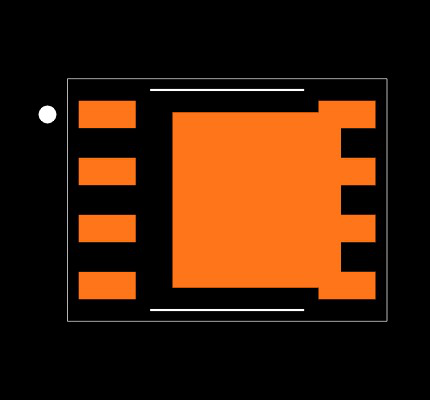

Footprint
No web preview
This Footprint is Available for

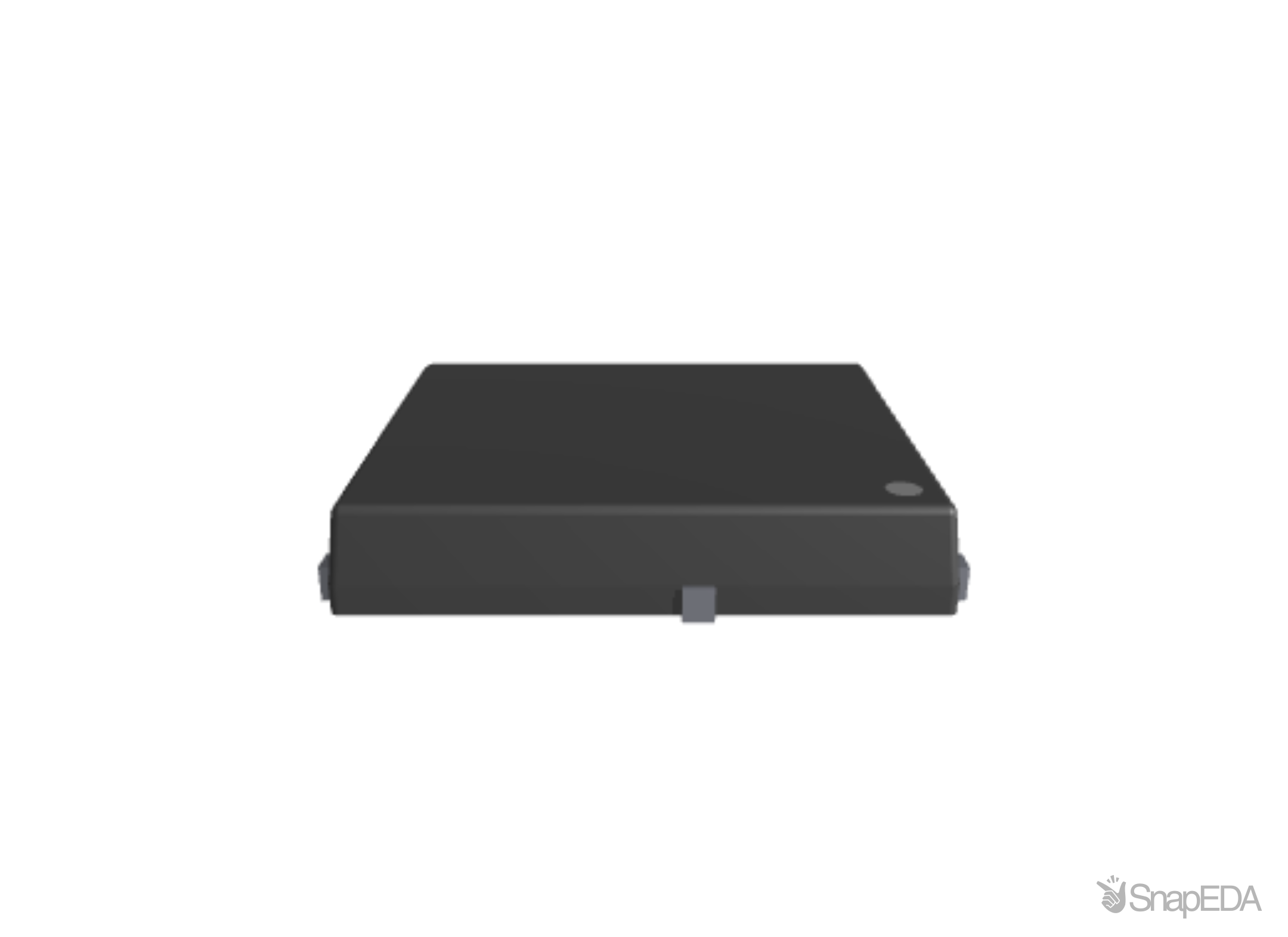

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FDMS86101
| Part Name | FDMS86101 |
| Manufacturer | onsemi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 100 V |
| Typical Gate Charge @ Vgs | 39 nC @ 10 V |
| Mounting Type | Surface Mount |
| Maximum Continuous Drain Current (A) | 80 A |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Series | PowerTrench |
| Maximum Power Dissipation | 104 W |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Height | 1.05 (mm) |
| Width | 6.25 (mm) |
| Length | 5.1 (mm) |
| Maximum Drain Source Resistance | 14 mΩ |
| Package Type | PQFN8 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 2 (V) |
| Channel Type | N |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
| Transistor Configuration | Single |
