FEP16DT-E3/45

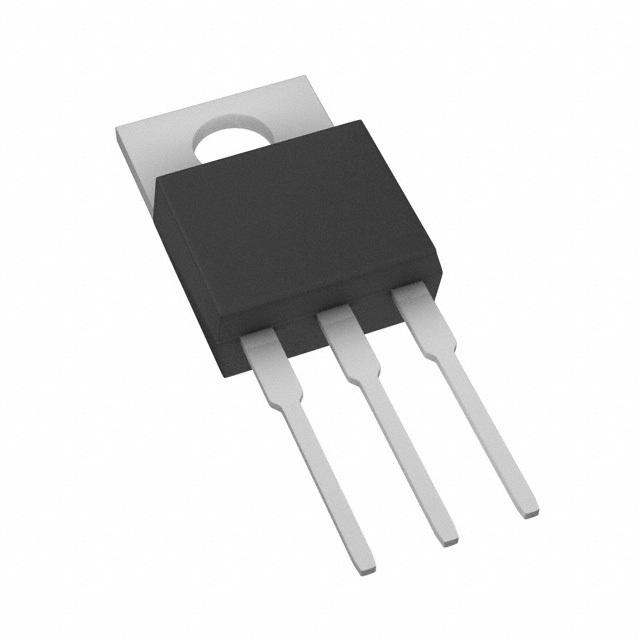

16 A 200 V 35 ns Dual Common Cathode Plastic Ultrafast Rectifier - TO-220AB
Availability: Out of Stock
Package Type: TO-220AB-3
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FEP16DT-E3/45 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FEP16DT-E3/45
| Part Name | FEP16DT-E3/45 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Through Hole |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 35 (ns) |
| Maximum Forward Voltage Drop (V) | 950 (mV) |
| Rectifier Type | General Purpose |
| Package Type | TO-220AB |
| Peak Reverse Repetitive Voltage (V) | 200 (V) |
| Diode Type | Ultrafast Rectifiers |
| Maximum Continuous Forward Current (A) | 16 (A) |
| Diode Configuration | Common Cathode |
| Pin Count | 3 |
| Peak Non Repetitive Forward Surge Current (A) | 200 (A) |
| Number Of Elements Per Chip | 2 |
