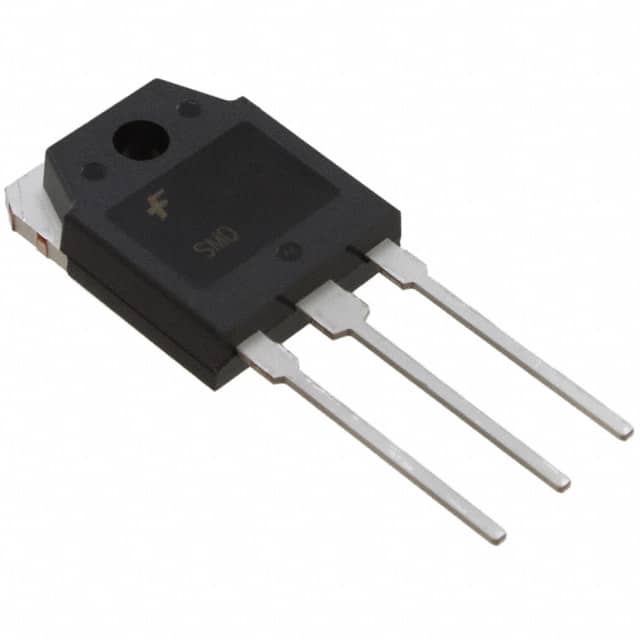

FGA60N65SMD
Trans IGBT Chip N-CH 650V 120A 600000mW 3-Pin(3+Tab) TO-3P Tube
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FGA60N65SMD by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FGA60N65SMD
| Part Name | FGA60N65SMD |
| Manufacturer | onsemi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 15.8 x 5 x 20.1 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 600 W |
| Maximum Collector Emitter Voltage (V) | 650 V |
| Channel Type | N |
| Maximum Continuous Collector Current (A) | 120 A |
| Maximum Gate Emitter Voltage (V) | ±20 (V) |
| Package Type | TO-3PN |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
Inventory for the FGA60N65SMD by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
| Onlinecomponents |
450
|
|
Visit Site |
No issues have been reported for the FGA60N65SMD
If you experienced any issues with this part, please report it.
