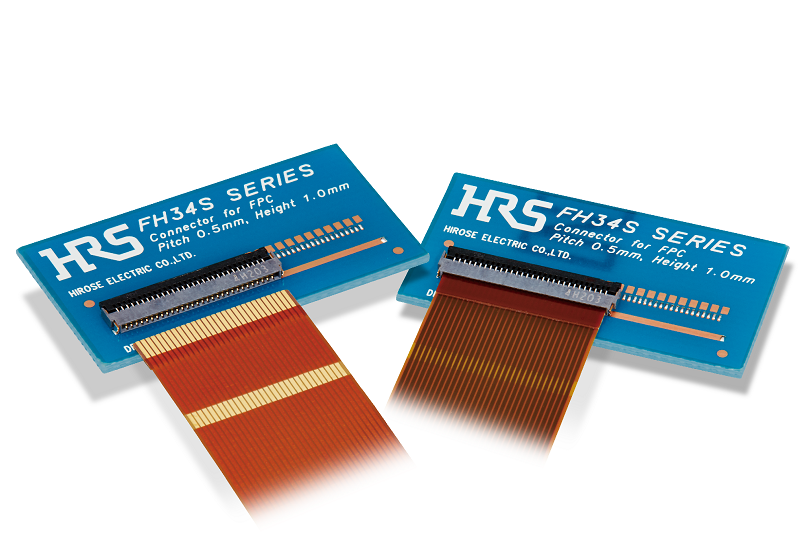

FH34SRJ-40S-0.5SH(99)
SnapVerified
40 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FH34SRJ-40S-0.5SH(99) by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FH34SRJ-40S-0.5SH(99)
| Part Name | FH34SRJ-40S-0.5SH(99) |
| Manufacturer | Hirose Electric |
| Temperature Range Max. | 105℃ |
| Temperature Range Min. | -55℃ |
| Product Link | https://www.hirose.com/en/product/p/CL0580-1260-6-99 |
| Type | Receptacle |
| Pin Count | 40 |
| RoHS | TRUE |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | FH34SRJ |
| Current Rating (A) | 500 (mA) |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50 V ac |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Solder |
| Locking Mechanism | Yes |
| Housing Material | Liquid Crystal Polymer, Polyamide |
| Number Of Rows | 1 |
| Termination Type | ZIF Top and Bottom contact |
| Pitch | 0.5 (mm) |
| Contact Plating | Gold, Nickel |
| Number Of Contacts | 40 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Phosphor Bronze |
Inventory for the FH34SRJ-40S-0.5SH(99) by Hirose from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
204
|
|
Visit Site | |
| Onlinecomponents |
500
|
|
Visit Site | |
| Verical |
500
|
|
Visit Site |
No issues have been reported for the FH34SRJ-40S-0.5SH(99)
If you experienced any issues with the symbol or footprint, please report it.
