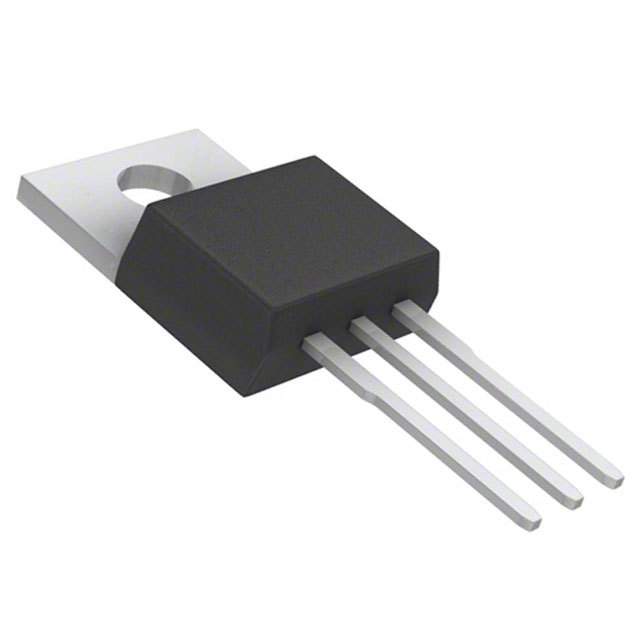

FQP47P06

Name: FQP47P06
Brand: Onsemi

P-Channel 60 V 47A (Tc) 160W (Tc) Through Hole TO-220-3

Availability: Out of Stock

Package Type: TO-220-3

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the FQP47P06 by Onsemi and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

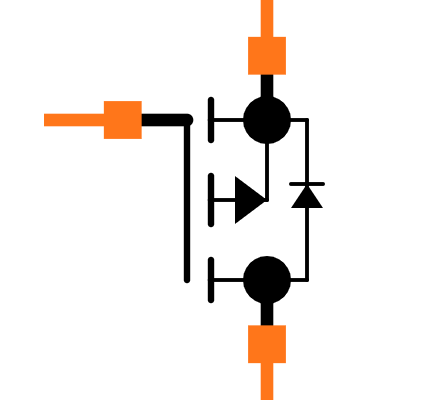

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

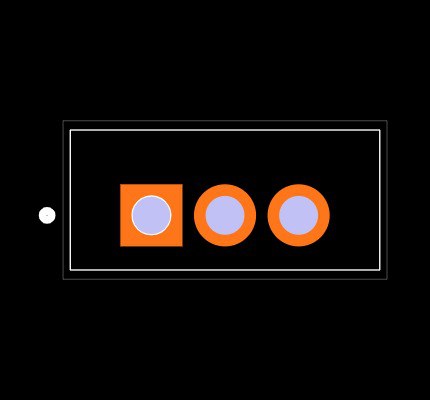

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

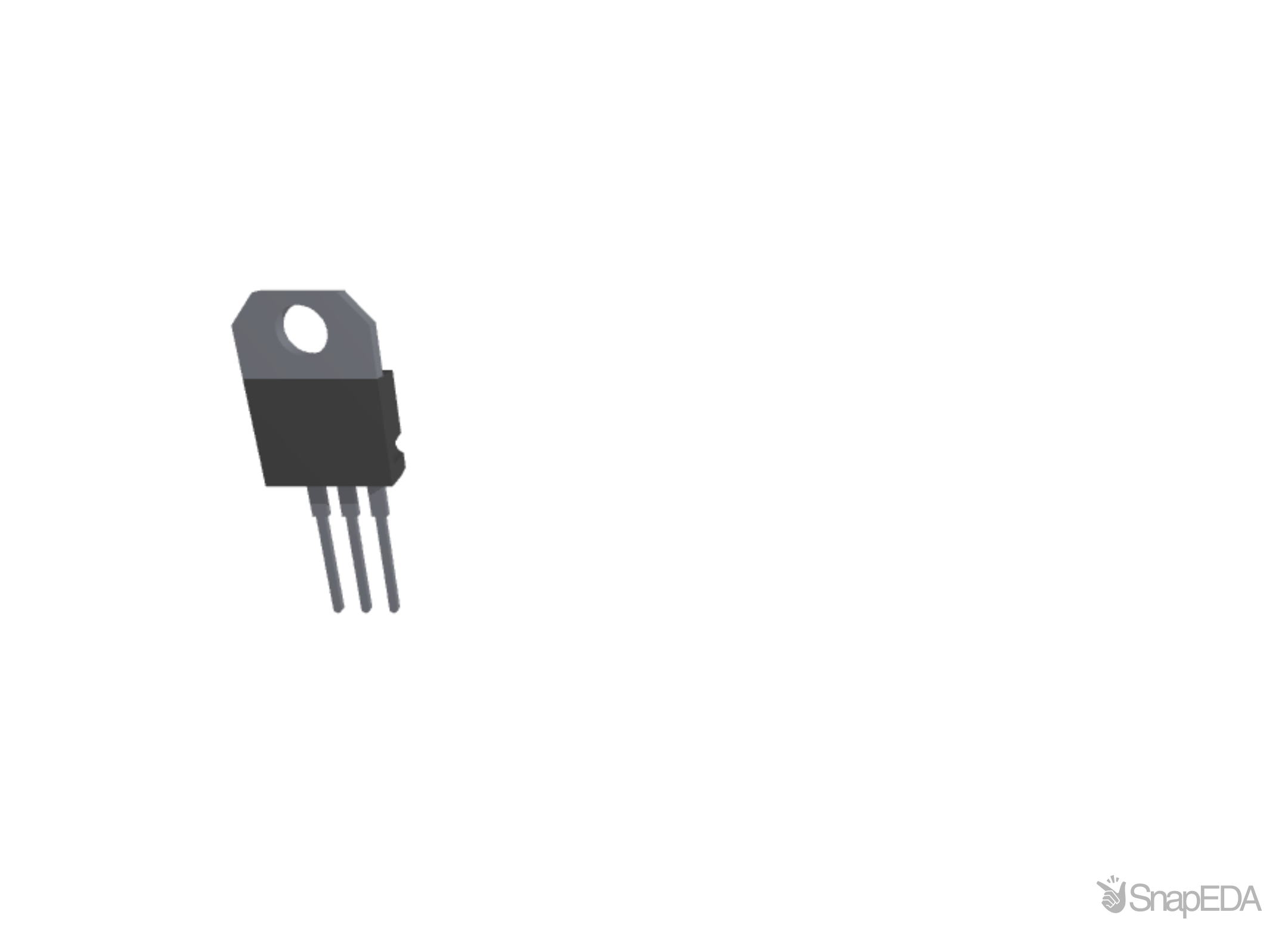

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the FQP47P06

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the FQP47P06

Part Name	FQP47P06
Manufacturer	ON
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Pin Count	3
Maximum Drain Source Voltage (V)	60 V
Maximum Continuous Drain Current (A)	47 A
Mounting Type	Through Hole
Maximum Gate Source Voltage (V)	-25 V, +25 V
Series	QFET
Maximum Power Dissipation	160 W
Transistor Material	Si
Channel Mode	Enhancement
Height	9.4 (mm)
Width	4.7 (mm)
Length	10.1 (mm)
Package Type	TO-220AB
Number Of Elements Per Chip	1
Minimum Operating Temperature	-55 °C
Minimum Gate Threshold Voltage (V)	2 (V)
Typical Gate Charge Vgs	84 nC @ 10 V
Channel Type	P
Maximum Operating Temperature	+175 °C
Maximum Drain Source Resistance	26 mΩ
Transistor Configuration	Single

We could not find inventory or pricing across major distributors for the FQP47P06 by Onsemi.
