FR107G
500ns, 1A, 1000V, Fast Recovery Rectifier
Availability: In Stock
Package Type: DO-41-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FR107G by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

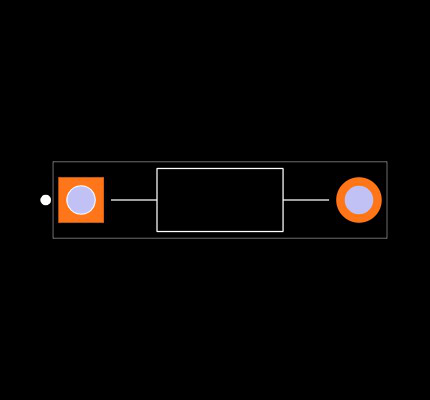

Footprint
No web preview
This Footprint is Available for

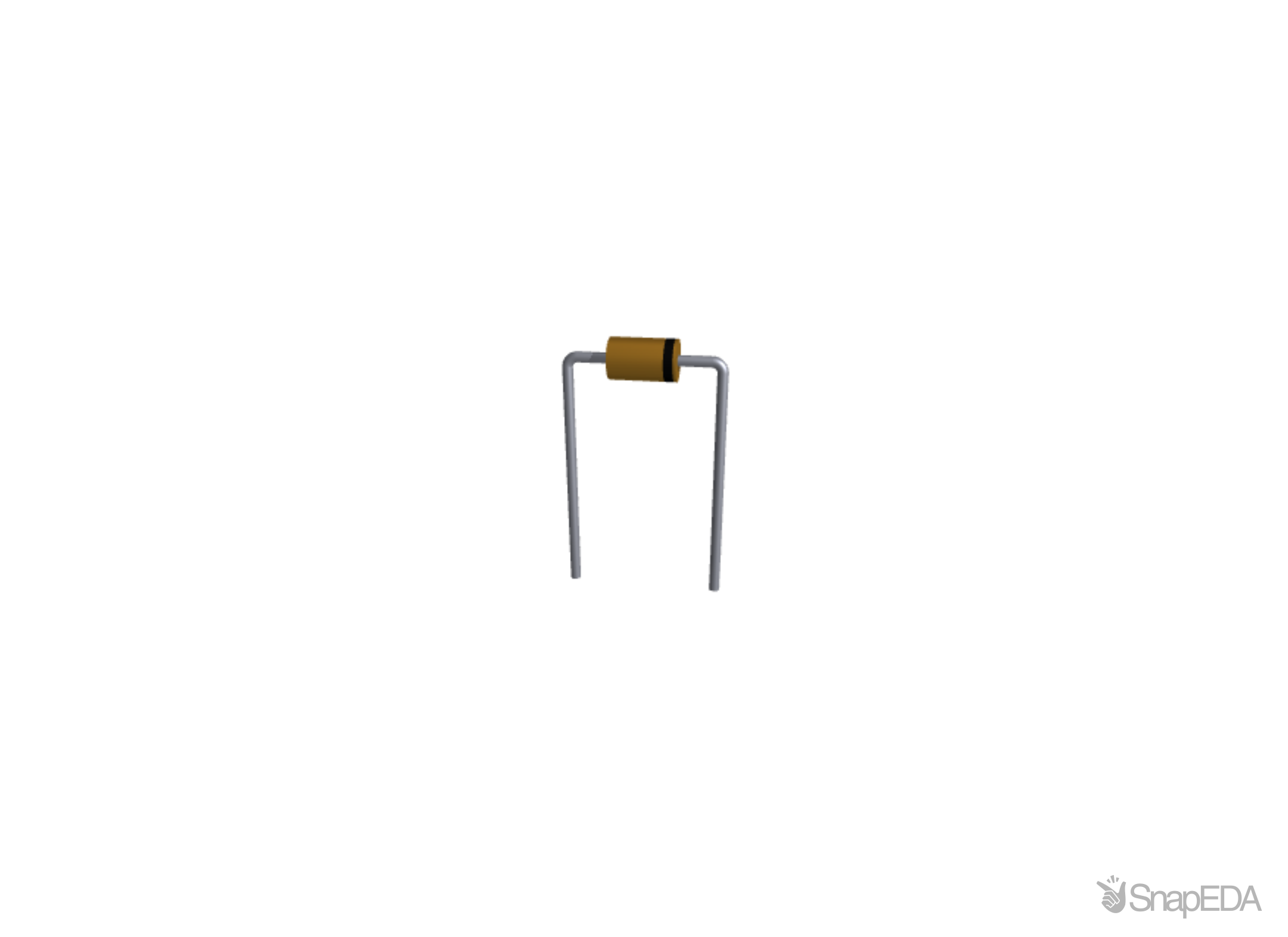

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FR107G
| Part Name | FR107G |
| Manufacturer | Taiwan Semiconductor |
| Family | FR GPP |
| Maximum DC Reverse Current (A) | 5e-06 |
| Package | DO-41 |
| Case Package | DO-204AL (DO-41) |
| Reverse Recovery Time | 5e-07 |
| Peak Forward Surge Current (A) | 30.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.3 |
| AEC-Q compliant | True |
| Maximum Average Forward Rectified Current (A) | 1.0 |
| RoHS | True |
| Maximum Repetitive Peak Reverse Voltage (V) | 1000.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 2.7 (mm) |
| Mounting Type | Through Hole |
| Peak Non-Repetitive Forward Surge Current (A) | 30 (A) |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop (V) | 1.3 (V) |
| Rectifier Type | Fast Recovery |
| Peak Reverse Recovery Time | 500 (ns) |
| Package Type | DO-41 |
| Number Of Elements Per Chip | 1 |
| Diode Type | Rectifier |
| Maximum Continuous Forward Current (A) | 1 (A) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Reverse Repetitive Voltage (V) | 1000 (V) |
Inventory for the FR107G by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
22,166
|
|
Visit Site | |
|
★ Featured
|
4,820
|
36,145 x $0.008
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
11,285
|
|
Visit Site | |
| Newark |
11,285
|
|
Visit Site | |
| RS UK |
3,100
|
|
Visit Site | |
| element14 Singapore |
11,285
|
|
Visit Site |
No issues have been reported for the FR107G
If you experienced any issues with the symbol or footprint, please report it.
